JVC DT-X91F ProHD 8.9" AC/DC Full Featured Monitor, 3GHD/SD-SDI, HDMI, Composite
JVC

JVC DT-X91F ProHD 8.9" AC/DC Portable Full Featured Monitor (3GHD/SD-SDI, HDMI, Composite)

SKU: JVDTX91F MFR: DT-X91F
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,235.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

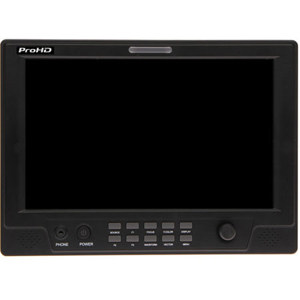

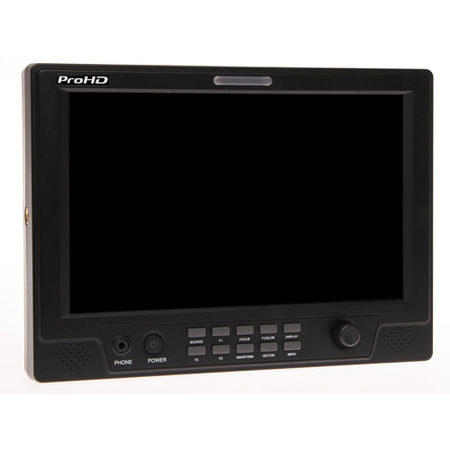

About the JVC DT-X91C

The DT-X91F is a professional full featured broadcast LCD monitor designed for field and studio applications. It features an 8.9-inch LCD panel with a native 1280x768 resolution, 800:1 contrast and 160° H/V viewing angle. Supported I/O include HDSDI (3G), HDMI, CVBS input/output and HDMI converted to SDI output.

The DT-X91F offers a wide range of professional functions including: Waveform/Vector scope/Histogram, up to 16-ch embedded audio meter, SDI time code, peaking focus assist, false color, blue only, zebra stripes, and internal color bars.

The monitor has front and rear TALLY lights, supports image zoom-in, rotate and flip, and is powered via a 4-pin XLR 12V DC connector or V-mount / Gold-mount.

JVC DT-X91C Features

  • 8.9-inch, 1280x768 Resolution
  • 16:9 / 4:3 adjustable
  • HD/SD-SDI, HDMI, CVBS inputs
  • HDMI converted to SDI output by a Build-in Converter
  • Waveform (Y/Cb/Cr/R/G/B), with full scale
  • Vector scope
  • R G B Histogram
  • Audio meter display (SDI 16-ch, HDMI 2-ch)
  • SDI timecode display
  • Peaking focus assist (red/blue switch)
  • False color, Blue only, Zebra, internal color bar
  • Underscan / Overscan switch
  • Safe area markers
  • Canon DSLR scale zoom-in
  • Picture flip
  • Customer editable video TITLE
  • V-mount / Gold mount option

JVC DT-X91C Specifications

Size 8.9 inches
Resolution 1280x768
Aspect Ratio 16:9 / 4:3
Brightness 400cd/m2
Contrast 800:1
Color 16.77 million colors
Viewing angle H/V:160°/160°
Video Format SDI SMPTE-274M: 1080i (60 / 59.94 / 50) / 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
Video Format HDMI 480I / 576I / 480P / 576P
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Video Format SDI SMPTE-274M: 1080i (60 / 59.94 / 50) / 1080p (30 / 29.97 / 25 / 24 / 23.98)
Working Voltage DC12V, or Battery 6.5V-17V
Power Consumption 15W
Environment Operating Temperature: 32~104°F (0~+40°C)
Storage Temperature: 5~140°F (-15~+60°)
Dimensions 7.6 x 5.5 x 1.9" (192 x 139 x 47mm)
Weight 1.2 lbs (550g)
