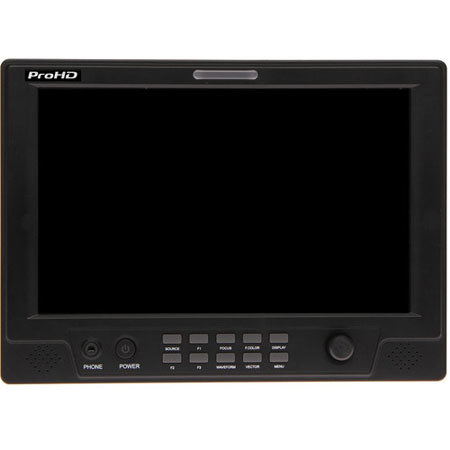

JVC DT-X91H ProHD 8.9" AC/DC Portable Monitor (3GHD/SD-SDI, HDMI, Composite)

JVC
SKU: JVDTX91H MFR: DT-X91H
JVC DT-X91C: Picture 1 thumbnail JVC DT-X91C: Picture 2 thumbnail JVC DT-X91C: Picture 3 thumbnail

About JVC DT-X91C

The ProHD DT-X91H is a professional broadcast LCD monitor developed for field and studio applications. It utilizes an 8.9-inch LCD panel with native 1280x768 resolution and an 800:1 contrast ratio. The monitor features a wide 160° H/V viewing angle, 3G/HD/SD-SDI, HDMI, CVBS inputs and loop through outputs.

The DT-X91H supports SDI and HDMI embedded audio output through 3.5mm earphone socket, and image zoom-in, rotate and flip, user editable video title, front and rear TALLY lights. It's powered via a 4-pin XLR 12V DC connector or V-mount / Gold-mount.

JVC DT-X91C Features

  • 8.9-inch, 1280x768 Resolution
  • 16:9 / 4:3 adjustable
  • 3G/HD/SD-SDI, HDMI, CVBS input
  • 3G/HD/SD-SDI, HDMI, CVBS loop through output
  • SDI & HDMI embedded audio output via 3.5mm socket
  • Underscan / Overscan switch
  • Safe area markers
  • Canon DSLR scale zoom-in
  • Picture flip
  • Customer editable video TITLE

JVC DT-X91C Specifications

Size
8.9 inches
Resolution
1280x768
Aspect Ratio
16:9 / 4:3
Brightness
400cd/m2
Contrast
800:1
Color
16.77 million colors
Viewing angle
H/V:160°/160°
Video Format SDI
SMPTE-274M: 1080i (60 / 59.94 / 50) / 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
Video Format HDMI
480I / 576I / 480P / 576P
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Working Voltage
DC12V, or Battery 6.5V-17V
Power Consumption
8W
Environment
Operating Temperature: 32~104°F (0~+40°C)
Storage Temperature: 5~140°F (-15~+60°)
Dimensions
7.6 x 5.5 x 1.9" (192 x 139 x 47mm)
Weight
1.2 lbs (550g)
