JVC DT-X91HX2 Dual 8.9" Rack Display Monitors with 3G/HD/SD-SDI, HDMI, 800:1 Contrast Ratio, 1280x800 Resolution, 400 nit Brightness, Headphone Output

SKU: JVDTX91HX2 MFR: DT-X91HX2

Our Price

$2,650.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $2,995.00

Availability: Special Order .

Free Shipping

See all shipping options

Product Highlights

  • LCD Video Monitor
  • Rack Mounted

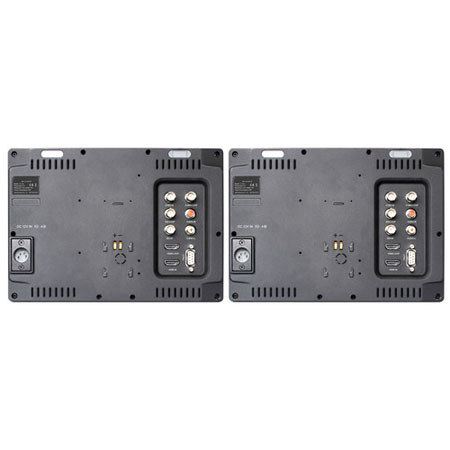

JVC DT-X91HX2: Picture 1 regular $2,650.00

About JVC DT-X91HX2

The JVC DT-X91HX2 Dual 8.9" Rack Display Monitors consist of two high-resolution and high-contrast LCD monitors in one 4RU dual rack. An included 4-pin XLR adapter connects to the rear of the rack and powers both monitors. Each monitor is 8.9 inches diagonally and features a 160deg. viewing angle.

SDI inputs support resolutions up to 1080p/30/25 and HDMI inputs up to 1080p/60/50. SDI and HDMI embedded audio can be monitored by a front panel headphone output.

If you remove the monitor from the rack, you can power each by a V-mount or Gold-mount battery.

JVC DT-X91HX2 Specifications

Monitor Size
Two 8.9" panels (2x 22.6 cm)
Resolution
1280 x 768
Brightness
400 nit
Contrast Ratio
800:1
Inputs
Each monitor has:
1x 3G/HD/SD-SDI
1x HDMI
1x Composite
1x L/R RCA audio
1x Tally 9-pin
1x 4-pin XLR 12 VDC power connector
Outputs
Each monitor has:
1x 3G/HD/SD-SDI loop
1x HDMI loop
1x Composite loop
1x 3.5 mm headphone jack
Aspect Ratio
16:9, 4:3
Color
16.7M
Viewing Angle
160deg./160deg.
Formats
SDI:
SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
HDMI:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
Voltage
12 VDC, or optional 6.5 - 17 V battery (one included adapter powers both monitors)
Power Consumption
Approx. =8 W from each monitor
Operating Temperature
32 to 104deg.F (0 to 40deg.C)
Storage Temperature
5 to 140deg.F (-15 to 60deg.C)
Operating Humidity
10 - 90%
Storage Humidity
10 - 90%
Dimensions
Each monitor: 7.5x5.5x1.8 (19.05x13.97x4.57cm)
Rack: 4RU
Weight
Each monitor: 1.2 lbs (0.55 kg)
Mfr #
DT-X91HX2
SKU
JVDTX91HX2
