About JVC GM-552DU

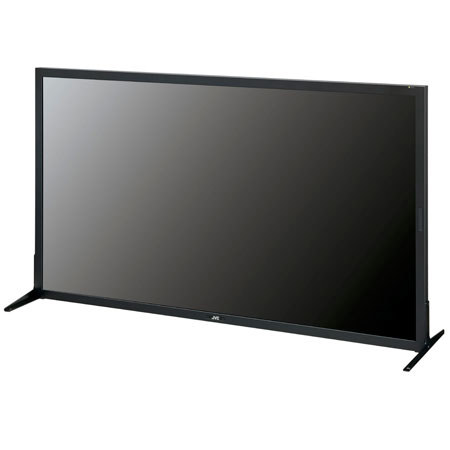

The JVC GM-552DU is a 55" class (54.6") Full HD (1920x1080 resolution) 16:9 monitor. Its ultra-high contrast display, durable design and excellent connectivity make it ideal for signage, information display, security and broadcast applications. Image settings useful for security applications are also included. The display may be used in landscape or portrait modes and the logo is removable.

A 3G/HD/SD-SDI interface is provided, making it suitable for use in broadcasting facilities and studios. Color temperature, brightness/contrast and backlight can all be individually adjusted. Common pre-sets are already integrated. The GM-552D is designed for 24 hours a day, 7 days a week constant use for a variety of applications. It includes customer selectable screen saving modes and LED backlighting which save power, increase image performance and add to a long screen lifetime of more than 50,000 hours.

The GM-552DU features a range of professional connections, including HD-SDI/SD-SDI and 3G-SDI interfaces, with loop out, HDMI, DVI, RGB (with loop out), S-Video (with loop out) and composite video.

JVC GM-552DU Features

  • FHD non-glare panel
  • LED backlighting (mercury-free)
  • Multi language OSD: English/German/French/Italian/Spanish
  • Multi Display: 2x1/2x2/3x3/4x4/5x5
  • Picture modes: STUDIO, CCTV1, CCTV2, USER
  • Useful picture functions: PIP/PBP/Portrait mode/Screen saver/ Image refresh
  • ID setting for RCU: 01-99 allows use of a single IR remote for control of a group of displays, such as in video wall applications
  • RS232C input/output terminals for creating a daisy chain
  • All-Metal Cabinet and Durable Design
  • Supplied with removable VWSA stand and handles
  • Input terminals arranged in a single row for easy connection
  • DC output terminal (+12V/Max. 350mA)

JVC GM-552DU Specifications

Monitor Type
LCD display monitor
Screen size
54.6" / 138.6cm
LCD panel
TFT active matrix
Back lighting
LED
Effective screen size (HxV)
1209.6x680.4mm
Resolution
1920 x 1080
Pixel pitch (HxW)
0.21x0.63mm
Panel brightness (TYP)
450 cd/m2
Contrast ratio (TYP)
4000:1
Aspect ratio
16:9
Viewing angle (TYP)
178deg. (Horizontally) / 178deg. (Vertically)
Display color
1073.7 million
Response time (G to G)
6.5 msec
Power requirements
AC 100 V -240 V. 50 Hz-BC Hz
Rated input current
1.8 A
DC output
DC +12V output Max. 350 mA
Audio output
Internal speaker: 1.5 W+1 .5 W
Video In
BNC x 1
S-Video Input
Mini DIN4-pin x 1
RGB (Analog) IN
D-Sub 15-pin 1
DVI Input
DV1-D (single link) 1
HDMI Input
HDMI type-A (Screw hole / Gefen)
Audio IN (CVBS/S-VIDEO)
RCA x 2 (L/R)
Audio IN (HDMI,DVI-D,VGA)
Stereo mini jack x 1
RS-232C IN
D-Sub 9-pin x 1
HD-SDI (3G) IN
BNC x 1 (3G) SMPD
VIDEO OUT
BNC x 1 (Passive loop through)
RGB (Analog) OUT
D-Sub 15-pin x 1
Audio OUT (MonitorOUT)
RCA x 2 (L/R)
RS-232C OUT
D-Sub 9-pin x 1
HD-SDI (3G) OUT
BNC x 1 (3G)
Video
1.0 V(p-p), automatic switching from 75 C) unbalanced termination to Hi-Z with loop-through operation.
S-Video
Y: 1.0 V(p-p) 75 C) unbalanced termination
C: Burst level
NTSC: 0.286V(p-p) 75 C) unbalanced termination
PAL/SECAM: 0.3 V(p-p) 75 C) unbalanced termination
RGB
R,G, B: 0.7 V(p-p) 75 C) unbalanced termination. SYNC: TTL (positive/negative)
DVI-D
DVI-D Signal
HDMI
HDMI Signal
SDI(GM-552D only)
(3G-SDI) SMPTE424M I SMPTE425M LEVEL A-i
(HD-SDI) BTA SOO4C I SMPTE292M (SD-SDI) ITU-R BT.656 I SMPTE259M
(EMBEDDED AUDIO) SMPTE299M I SMPTE272M
Analog Audio
500 mV(rms)
RS232C
How to use the serial communication" on page 24
DC OUT
DC +12 V output Max. 350 mA
Dimensions (WxHxD)
With stand Unit: 1272.6x745.5x360.0mm / 50.10x29.35x14.17"
Without stand: 1266.6x741.4x75.7mm / 49.86x29.18x2.98"
Weight
With Stand: 32.3kg / 71.20lbs
Without Stand: 31.4kg / 69.22lbs
