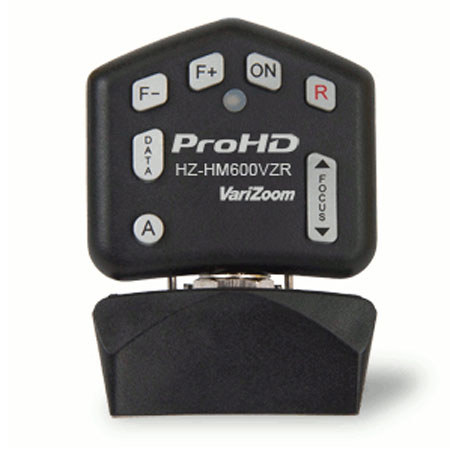

JVC HZ-HM600VZR Remote Lens Control for GY-HM600/650 Cameras
The JVC HZ-HM600VZR is a remote lens control specifically calibrated for the GY-HM600 and GY-HM650 Cameras. It plugs into the 2.5mm remote (LANC/Control-L) connector on the camera, and is ideal when operating the camcorder using a tripod, jib, crane or boom.
Remote functions are all conveniently available and controllable with a single hand. Zoom is achieved via a wide sweep variable rocker control. Focus is on the right side and is a rocker style control for manual focus. Iris control is achieved through two separate controls to either increase or decrease the lens iris. On the top right is the "R" button to manually control record start / stop. A red LED illuminates during recording.
Note: When using on a jib, crane or boom, a 2.5mm extension cable is required (VZ-EXT-L10 10' Extension Cable).
|Control Functions||A: Auto Focus toggle
DATA: Toggles on-screen display
F-: Iris open
F+: Iris close
ON: Auto Iris toggle
FOCUS: focus rocker
