JVC KY-F560U 0.5" 3 CCD High-Resolution Industrial Camera

JVC KY-F560U: Picture 1 thumbnail JVC KY-F560U: Picture 2 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About JVC KY-F560U

The JVC KY-F560U is a high-performance industrial-style 3-CCD video camera designed around systems for remote pan and tilt applications and studio configurations. Just because the body of the camera is smaller than a breadbox does not exclude it from some very advanced technologies. It uses a 12-bit analog to digital converter and a 24-bit digital signal processor. Both processes were developed to defeat hard to interpolate images that include low- and bright-light scenes, complex patterns and textures and subtle color and detail reproduction. There is a full range of remote system components including controllers and remote-control heads. The studio system components include studio viewfinder, studio CCU, intercom compatibility and an uncompressed digital output option.

JVC KY-F560U Features

  • 3-CCD Ultimate Video Quality: The KY-F560U has 3 video chips for the greatest color and contrast representation possible. This camera's chips each are comprised of 410,000 pixels
  • High Resolution From High Technology: Given the advanced technology that goes into the KY-F560U it's no wonder that the camera functions with a wide dynamic range and outputs an amazing amount of standard definition video. Signal to noise ratio is measured at 62 dB
  • Analog or Digital Outputs: The KY-F560U can be used in analog or digital systems, those with remote controllers or studio configurations. SDI, uncompressed digital video can be output using the optional KA-F5601. This board is tailored to the remote controlled environment
  • Full Auto and Full Custom Settings: The camera has automatic settings that will keep colors consistent even when lighting conditions change. Auto white balance continually adjust for lighting conditions that change- throughout a day as an example

JVC KY-F560U Specifications

Remote Video, Studio, Teleconferencing
Image Device
3-CCD 1/2-Inch
Signal System
1/2-Inch Bayonet Mount
Number of Pixels
1.23 Million Total Pixels
Horizontal Resolution
850 TV Lines
Minimum Illumination
0.7 Lux with f/1.4 and Gain-Up
Signal-to-Noise Ratio
64 dB
f/13 at 2000 Lux

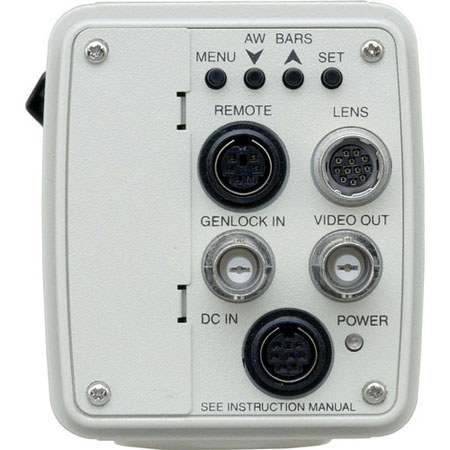

Signal Connectors
Composite Video- BNC (x 1 output)
SDI Video- Optional with KA-F5601 or F5603 provides BNC (x 1 output)
Genlock- BNC (x 1 input)
Remote Control- 6-Pin (x 1)
DC Power- 8-Pin (x 1 input)
Power Requirements
12 Volts DC
Power Consumption
8 Watts
Operating Temperature
23deg. to 104deg. F
-5deg. to 40deg. C
Dimensions (WxHxD)
2-13/16x3-3/16x6" / 70x80x152.5 mm
1.76 lbs/ 0.79 kg
