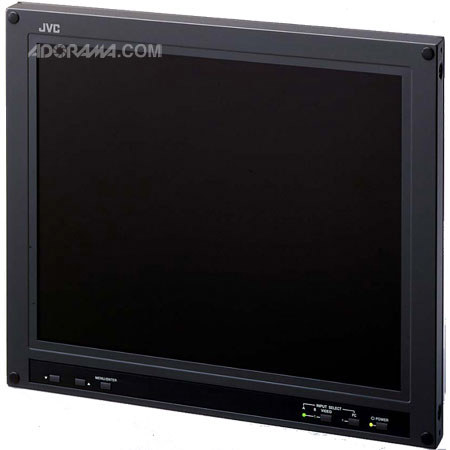

JVC LM-17GU Super-Thin 17" High Resolution Multi-Purpose LCD Video Editing Monitor, NTSC/PAL

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock

About the JVC LM-17GU

A Professional Quality Multi-Purpose LCD Monitor Designed for Flexible Installation...

JVC's LM-17GU brings the advantages of LCD display to the most demanding professional users. The flat-screen LM-17G delivers crisp, bright pictures in a package that weighs less and uses a lot less power than a comparable CRT display. It's designed to be used as either standalone with its own desktop stand or be rack mounted.

Four VESA standard 100mm mounting holes enable the monitor to accommodate a variety of industry standard mounting brackets. And since the display can easily accept and switch between a variety of video and computer sources, it is applicable in a wide range of installations.

Needs less space, Less Power, but offers More:
• The LM-17GU brings you the major advantages of a flat-screen LCD. Compared with conventional CRT displays, the LM-17GU is lighter, thinner, and uses a lot less power. The latest advances in TFT flat display technology produce exceptionally bright (280 cd/m²) high resolution pictures, with a wider viewing angle of 178° (horizontal and vertical) and with no possibility of burn-in.

Universal AC Input:
• No need for adapters with its automatic univeral AC input, the LM-17GU can be connected to a range of 100 240 volt (50Hz/60Hz) mains power.

Video and PC Inputs (SXGA):
• The LM-17GU comes with two standard composite input terminals (BNC) each with a bridged BNC output. It can also be connected directly to a PC via the 15 pin D-sub terminal to display VGA, SVGA, XGA and SXGA images with a resolution of upto 1280 x 1024 pixels.

Tough, Durable design:
• A tough, yet elegant metal cabinet ensures the LM-15GU has the durability neededin professional and institutional settings, and in the field.

Selectable Aspect Ratio with Remote Function:
• The LM-17GU displays images with aspect ratios of 4:3 or 16:9 which are easily selectable by way of an on-screen menu or an external remote control connector.

Flexible installation:
• Because of its heavy duty metal design, the LM-17GU offers a wide range of installation options. It comes standard with a metal desktop stand. An optional 7U rack mount is also available.

For wall mounting, there are four VESA standard100mm mounting holes on the rear panel. Four capped through holes are located onthe front corners of the bezel and offer even more options for mounting. These holes may also be used to install additional screen protection if necessary.

JVC LM-17GU Includes

  • LM-17GU 17" LCD Monitor
  • Desk Stand
  • Universal Power Supply
  • JVC One-Year Parts and Labor Warranty

JVC LM-17GU Features

  • Super Wide LCD viewing angles (H / V): 178°/ 178°
  • Ultra High LCD contrast ratio: 1000:1 (Typical)
  • Very Bright LCD images: 280 cd/m2
  • Low LCD power consumption: 45W
  • Universal usage: Video & PC; PAL & NTSC; VGA, SVGA & XGA; 100V 240V AC
  • External Remote Control operation (contact closure type) for selecting: Video input A or B ; 16:9 or 4:3 aspect ratio
  • Occupies minimal space through the intelligent design of LCD panel and the built-in power supply
  • Square section metal chassis combines rigidity with ease of installation
  • Designed for rack mounting with the 7U rack mount accessory kit
  • Four capped through-holes on the front corners increase the options for mounting
  • Four 100 mm pitch VESA marking holes in centre of rear panel for universal VESA wall and desktop mounting
  • Simple desktop stand included

JVC LM-17GU Specifications

Size 17"V
Pixel Pitch (mm) 1280 x 1024
Brightness (cd/m2) 280 cd/m2
Type LCD video monitor
Contrast Ratio 1000:1 (Typ.)
Viewing Angle Typical: Vertical: 178° Horizontal: 178°
Aspect Ratio Select: 4:3 / 16:9
Controls Remote control (contact closure type) Input select: Video A / Video B
SIGNAL INPUT: Input Video Signal NTSC, PAL, B/W, manual select
PC: fh: 31kHz 60kHz fv: 56Hz 75Hz
Supported range of resolutions: VGA, SVGA and XGA
WALL MOUNT: VESA® VESA 100 mm pitch (rear panel) Mounting hole
CABINET COLOR: Front/Back Material: Metal
DIMENSIONS: Physical (WxHxD) 15.8" x 13.7" x 2.7"
402mm x 348mm x 70.1mm
WEIGHT: Net(Physical) 11 Lbs / 5.0 kg (without stand)
Power Consumption 45w
Power Supply 100V 240V, 50Hz/60Hz
Color System NTSC and PAL
Input Video BNC x 2, bridged
PC D-sub 15-pin
