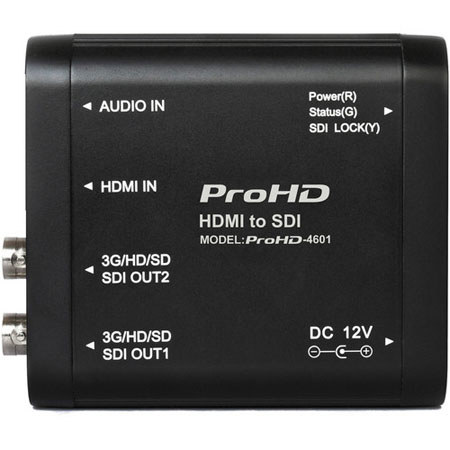

JVC PROHD-4601 HDMI to SDI Converter
See all JVC items

JVC PROHD-4601 HDMI to SDI Converter, 2x 3G/HD/SD-SDI Outputs

SKU: JVPROHD4601
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JVC PROHD-4601 Specifications

  • Inputs

    1x HDMI 1.3
    1x 3.5 mm analog audio jack

  • Outputs

    2x 3G/HD/SD-SDI

  • Video Format

    HDMI:
    480i / 576i / 720p (60 / 59.94 / 50)
    1080i (60 / 59.94 / 50)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    SDI:
    SMPTE-425M - 1080p (60 / 59.94 / 50)
    SMPTE-274M - 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080i (60 / 59.94 / 50)
    SMPTE-296M - 720p (60 / 59.94 / 50)
    ITU-R BT.656 - 576i (50)
    SMPTE-125M - 480i (59.94)

  • Audio Format

    48 KHz sync

  • Power

    = 3 W

  • Voltage

    DC 6-18 V

  • Operating Temperature

    32 to 158deg.F (0 to 70deg.C)

  • Operating Humidity

    10 - 90%

  • Dimensions

    5.5x2.9x1.2" (14x7.5x3 cm)

  • Weight

    0.3 lbs (138.5 g)

About JVC PROHD-4601

The JVC ProHD-4601 HDMI to SDI Converter converts an HDMI input to two SDI outputs uncompressed, with audio embedded and in either HD or SD, whichever the original signal is in. With two SDI outputs available, you can send one HDMI signal to two SDI devices at the same time. For example, you can stream a camera signal, from the camera's HDMI output, simultaneously to an SDI recorder and to an SDI monitor.

An important benefit of SDI is long transmission distances. SDI can carry HD for 75 ft and SD for 300 ft. If you're shooting a scene in one room, you can monitor it in another.

JVC PROHD-4601 Features

  • Sends an HDMI signal to two SDI devices, uncompressed and with audio embedded

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Sends an HDMI signal to two SDI devices, uncompressed and with audio embedded

What's in the box:

  • JVC PROHD-4601 HDMI to SDI Converter
  • Power Adapter
  • JVC Warranty
