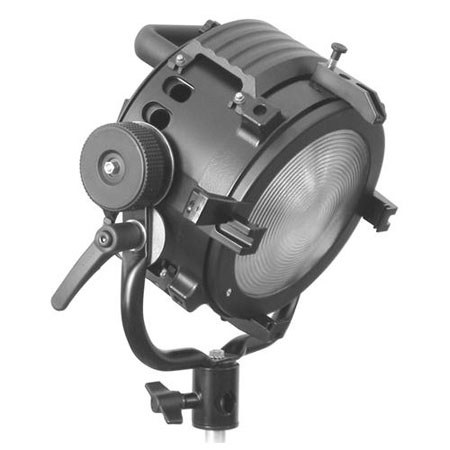

K 5600 BlackJack 400 HMI Fresnel Lamp Head Complete Kit With Tungsten Back, with One Carry Case, AC Only

See all K 5600 items
SKU: K56BJ400TK MFR: K0400BJKT
K 5600 : Picture 1 thumbnail K 5600 : Picture 2 thumbnail K 5600 : Picture 3 thumbnail K 5600 : Picture 4 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Made in USA

Our Price

$5,790.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About K 5600

The BlackJack 400 complements K 5600 compact line of Joker-Bug with a very small clean Fresnel instrument capable of very wide, yet controllable, beam patterns. The new design offers the versatility and compactness that encompass the driving force behind K 5600.

The typical design of a Fresnel lensed instrument consists of placing the lamp (light source) at (or very near to) the focal point of the lens to achieve a "SPOT". This being the furthest point from the lens, typically the fixture housing is designed around this maximum distance.

The Drop-in Fresnel lenses are removable allowing quick access to the popular "Open Eye" (no lens) sharp shadow projection mode. Two Fresnels are offered: a Soft (74 x 25 degrees beam patterns) and a Spot (44 x 6 degrees). Precise lamp and reflector positioning insure a clean light and shadow quality. Double shadowing has been eliminated in either mode.

The Barndoor for such a wide beam system had to be completely re-thought and the proposed version behaves more like miniature flags capable of reaching far past the lens in front or back of it. The front end is outfitted with special plugs made to receive Chimera poles.

The Back Cover of the unit supports all the ignition electronics, the lamp, its socket and its reflector, reducing maintenance intervention as well as down time. It can also be replaced by tungsten back converting the unit into 600W, 3200Kelvin.

K 5600 Features

  • Aluminum casting, high temperature black epoxy
  • MSR 400-HR lamp
  • Borosilicate UV Filter tempered filter

K 5600 Specifications

Main Housing
Aluminum casting, high temperature black epoxy
Mirror
Specular spherical. Aluminum 90reflectance electrolytically coated
Focusing
By means of a rack and pinion system actuated by the side knob.
Safety Glass Beaker
Borosilicate UV Filter tempered
Yoke
5/8" Baby size. Tubing black epoxy finish
Lamp
MSR 400-HR, 5600 Kelvin, 600 hours life
Power Supply
Electronic, square wave flicker free. AC input
ON/OFF push button switch
Yes
Connectors
Molded Veam quarter turn quick locking
Extension Cable
25 feet, 8 feet attached to the head
Accessory size
6 1/2", 6 5/8"
Tungsten Lamp
FRG = 500W 110V, FRK = 500W 220V
Dimensions
17.5 x 12 x 16.5 in
45 x 30 x 42 cm
Weight
36 lbs
16 kg
