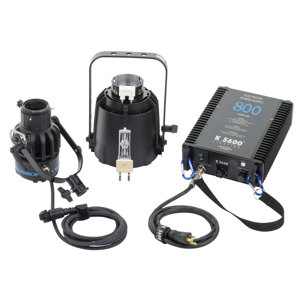

K 5600 Joker-Bug 800 Watt PAR Lamp Head Complete Kit, with Carrying Case, AC Only

See all K 5600 items
SKU: K56JB800K MFR: K0800JB
Made in USA

Our Price

$6,564.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About K 5600

The Joker Bug 800 represents a natural step for K 5600, an extension of it's line of HMI daylight fixtures. After the enormous popularity of the 200 and the 400, the full f-Stop increment seemed logical. Another determining factor for the creation of this particular fixture size is the main power limitations associated with the location shooting.

The next size up (1200W) monopolizes a full circuit where as the Joker Bug 800 will allow for another source such as a 400 while delivering twice the output of that 400. The Joker Bug 800 is comparable to a 3200/4000 quartz fixture but with a power draw of only 12.5 Amps. In the Bug-Lite mode (no optics) the main application is in traditional Lightbanks as well as Lanterns where it uses the sides as a large reflector, collecting the maximum output of the lamp and filling the front screen very evenly.

It is very powerful in daylight interiors and can operate in any position including pointing down. The BEAMER optical accessory turns the BUG-LITE into a Joker Bug, a directional PAR unit offering various beam patterns through quick lens changes. The Joker Bug 800 offers the most flexible optical configuration for location lighting by achieving Spot to Flood ratios 55 to 1 with beam angles from as narrow as 5 degrees to as wide as 45 degrees.

The Joker Bug 800 is delivered with a Clear Glass Beaker when reaching for full intensity is important, and a Frosted Glass Beaker when light quality is the prime concern. The 800W lamp was specified with UV Stop Quartz. The Amount of energy dissipated would not allow for completely closed Glass Beaker design. The lamp with it's G22 base remains very compact and easily transportable. The small, quiet ballast can be hidden anywhere and plugs in any circuit without risk of overloading.

K 5600 Features

  • Aluminum casting, high temperature black epoxy, striker compartment is clear anodized.
  • Optional accessories include lenses (SW,W,M,FF), color correction glass, speed rings, barndoor, SofTube and the Frosted Beaker
  • Mounting/Grip Equipment: All standard 5/8" baby hardware.

K 5600 Specifications

Lamp Housing
Aluminum casting, high temperature black. Striker compartment is made of aluminum in light gray finish
Lamp Socket
G22, highly insulated for hot retsrike
Safety Glass Beaker
Borosilicate tempered
Yoke
Aluminum casting black high temperature finish. Large T-handle and large brake area for use with Lightbanks, SpeedRings, Louvers and Lanterns
Beamer housing
Solid one piece machined aluminum with replaceable ears. Black anodized.
Beamer reflector
7" diameter specular parabolic, aluminum 90% reflectance electrolytically coated.
Accessory Size
7 3/4"
Mounting/Grip Equipment
All standard 5/8" baby hardware
Lamp
800 Watt MSR/SE daylight single ended discharge. Special UV-Stop envelope. 600 hours maximum life.
Connectors
Veam quarter-turn quick locking
Extension Cable
25 foot shielded. Common to 200/400 and 800 (nine feet attached to the head)
Power Supply
Electronic, square wave flicker free. AC input:90-265 Volt auto sensing.
ON/OFF push button switch
Yes
Kit Dimensions
17.5 x 12 x 16.5 in
45 x 30 x 42 cm
Kit Weight
41 lbs
19 kg
