K 5600 Joker Bug 1600W Zoom Beamer Kit, 90-265VAC, 5600K Lamp

See all K 5600 items
SKU: K5K1600JBZ MFR: K1600JBZ
K 5600 K5600: Picture 1 regular $9,560.00

About K 5600 K5600

The Joker-Bug 1600 is a powerful continuation of the Joker generation of daylight HMI fixtures. At 1,600W, the Joker-Bug 1600 is comparable to over 6,000W of quartz output and produces twice as much, or one full stop more light, as the Joker 800. This Joker-Bug 1600W Zoom Beamer Kit (90-265VAC) by K5600 comes with the Zoom Beaker-equipped Joker-Bug head. This revolutionary accessory is high-temperature black reflector with a faceted silver interior that focuses from 15-45 degrees and was engineered around the radiant image of a 1,600W HMI lamp. Machined from electrolytically coated, aluminum billet, it accepts 12" accessories.

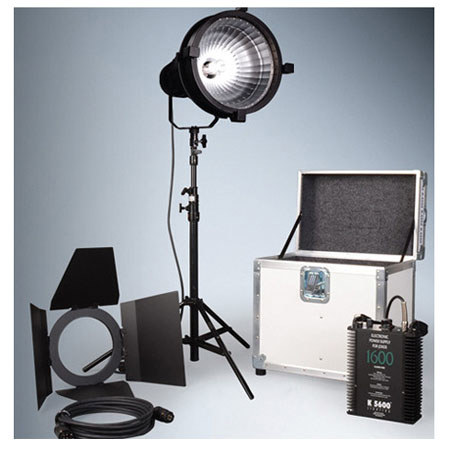

The kit includes a square wave, flicker-free, 90-265VAC 50/60Hz, fan-cooled, 50% dimmable ballast with an Output Frequency Selector. A 25' head cable, 3 scrims with a bag and a set of barndoors are also provided. You can choose between the included clear or diffused frosted Beaker lamp protectors, depending on the light quality that you require. It all fits in the kit's hard, aluminum- reinforced shipping/traveling case.

K 5600 K5600 Features

  • Joker 1600 - Not Just Another HMI: At 1,600W, the Joker 1600 is comparable to over 6,000W of quartz fixture output and produces twice as much, or one full stop more light, as the Joker 800
  • The Joker 1600 Zoom Beamer Fixture: The Joker-Bug fixture in this kit includes a Zoom Beamer. Specifically engineered around the radiant image of a 1,600W lamp, this accessory renders a 15 to 45 beam angle with maximum output thanks to its highly reflective finish
  • The Electronic Power Supply: The power supply is not only quiet, but smaller than comparable ballasts (even those of less wattage). It's capable of running on a 15A/120V circuit, is dimmable and has selectable frequency options for extreme high speed shooting

K 5600 K5600 Specifications

Light Fixture: Rating
1,600W HMI
Light Fixture: Socket
G22, highly insulated for hot retsrike
Light Fixture: Lamp
HMI 1,600W CSR/SE single-ended
Lamp life: 700 hours
Light Fixture: Color Temperature
Approximately 5,600K
Light Fixture: Reflector
Zoom Beamer accepts 12" (30.5 cm) accessories
Light Fixture: Lens
No, Zoom Beamer focuses from 15-45 degrees
Light Fixture: Cable
9.0' (2.74 m)
Light Fixture: Mount
5/8" (16 mm) Baby pin and 1 1/8" (28 mm) Junior pin
Light Fixture: Construction
Zoom Beamer housing: combination of machined aluminum billet with spun aluminum parts; replaceable ears; high temperature black
Zoom Beamer reflector: faceted, engineered spline shape; aluminum Yoke: steel; black high temperature finish
HMI Ballast: Rating
1,600W Square wave, flicker-free
HMI Ballast: Cable
Kit includes 25' shielded extension (7.62 m) cable
HMI Ballast: Power
90-265VAC, 50/60Hz
Output frequency selector
HMI Ballast: Fan Cooled
Yes
HMI Ballast: Dimming
50-0%
HMI Ballast: Connectors
Veam quarter-turn quick locking
Dimensions
Light Fixture: 20.5x14x14" (52x35.5x35.5cm) (with yoke folded back, measured from Zoom Beamer)
Width and depth of Joker-Bug: 5.5" (14 cm)
HMI Ballast: 10.5x8.5x3.5" (26.6x21.6x9.0cm)
Kit: 19x23x14" (48.2x58.4x35.5 cm)
Weight
Light Fixture: 18lbs (8.16kg)
HMI Ballast: 58lbs (26.3kg)
Kit: 58lbs (26.3kg)
Mfr #
K1600JBZ
SKU
K5K1600JBZ
