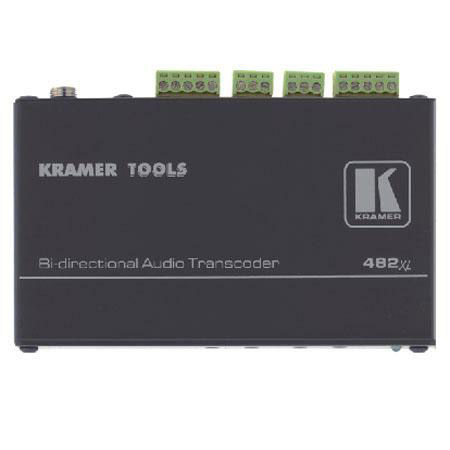

Kramer Electronics 482XL Balanced/Unbalanced Stereo Audio Transcoder, Black

SKU: KR482XL MFR: 482XL
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$225.00 List Price

Our Price

$180.00
Free Shipping
Qty:

Add to Wishlist

About the Kramer Electronics 482XL Transcoder

The 482XL Balanced/Unbalanced Stereo Audio Transcoder from Kramer Electronics is an audio transcoder designed for use with balanced and unbalanced stereo audio signals. It will simultaneously convert balanced signals to unbalanced and vice versa.

The unit features terminal block connectors and level (gain) control with independent left and right control. Moreover, it belongs to the Kramer TOOLS family of products and up to (3) of these units can be mounted side by side in 1U of a standard equipment rack when used in conjunction with the separately available RK-3T rack kit.

Kramer Electronics 482XL Transcoder Includes

  • Kramer Electronics 482XL Balanced/Unbalanced Stereo Audio Transcoder
  • Transcoder
  • Power Supply
  • Set of Mounting Brackets
  • Kramer Electronics Warranty

Kramer Electronics 482XL Transcoder Features

  • Balanced & Unbalanced Transcoding: Use this unit to simultaneously convert balanced stereo audio to unbalanced stereo audio or vice versa
  • Gain: It offers level (gain) control with independent left and right control
  • Kramer TOOLS: This amplifier belongs to the Kramer TOOLS family of products and up to (3) of these units can be mounted in 1U of rack space using an optional rack kit

Kramer Electronics 482XL Transcoder Specifications

Construction Metal
Input (1) unbalanced stereo audio on 3-pin terminal block connector
(1) balanced stereo audio on a 5-pin terminal block connector
Output (1) unbalanced stereo audio on 3-pin terminal block connector
(1) balanced stereo audio on a 5-pin terminal block connector
Output Level Balanced: 21dBm (maximum)
Unbalanced: 21dBm@max gain (maximum)
Bandwidth >100kHz
Controls -57dB to + 6dB (balanced to unbalanced level)
-16dB to + 19dB (unbalanced to balanced level)
Coupling Balanced to unbalanced: in=AC, out=DC
Unbalanced to balanced: in=AC, out=DC
THD & Noise 0.05%
2nd Harmonic 0.01%
Signal-to-Noise Ratio 95dB/87dB @ balanced to unbalanced/unbalanced to balanced, unweighted
Power 12VDC, 190mA (fully loaded)
Dimensions (H x W x D) 0.98 x 4.7 x 2.95" (2.5 x 12 x 7.5cm)
Weight 0.66 lbs (0.3kg)
