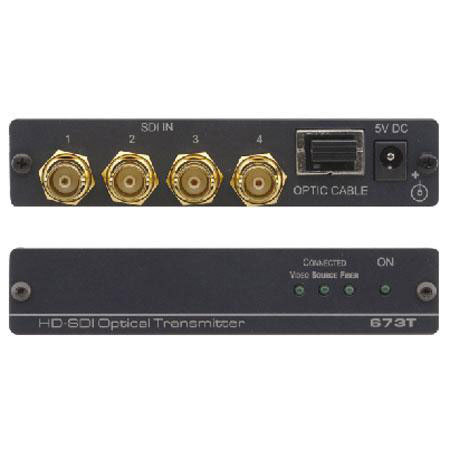

Kramer Electronics 673R/T 4-Channel 3G HD-SDI Over Fiber Optic Receiver and Transmitter, 3200ft Range

Kramer Electronics
Kramer Electronics 673R/T: Picture 1 thumbnail Kramer Electronics 673R/T: Picture 2 thumbnail

List Price: $4,850.00

20% Off

Our Price

$3,880.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Kramer Electronics 673R/T

The 673T and 673R are a high-performance fiber optic transmitter and receiver for signals up to 3G HD-SDI and Dual-Link HD-SDI signals. The 673T converts up to four channels of SDI signals on BNC connectors to an optical signal that is transmitted over a single fiber optic cable. The 673R converts the optical signal back to SDI signals.

Kramer Electronics 673R/T Features

  • Max. Data Rate - Up to 3Gbps for each SDI input
  • SDI Inputs/Outputs - 4 channels on BNC connectors
  • HDTV Compatible
  • System Range - 1000m (more than 3200ft)
  • Cable - A single multi-mode OM3 fiber optic cable with SC connectors
  • Multi-Standard Operation - SDI, HD-SDI, 3G HD-SDI and dual link HD-SDI
  • Reclocking and Equalization per Channel
  • Fiber Optic, Source & Input Indication LEDs
  • Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Kramer Electronics 673R/T Specifications

Inputs
SDI serial video, 75Ohms on BNC connectors
Outputs
1 optical connector
Bandwidth
Up to 3Gbps for each SDI input
Range
1000m (>3200 feet) for 3G HD-SDI
Indicators
VIDEO, SOURCE, FIBER and ON LEDs
Power Source
5V DC, 780mA
Dimensions (W x D x H )
12cm x 7.95cm x 2.76cm (4.7" x 3.1" x 1.08")
Weight
0.3kg (0.67lbs) approx. each
