Kramer Electronics 710 Y/C Over Twisted Pair Receiver

Kramer Electronics
SKU: KR710 MFR: 710

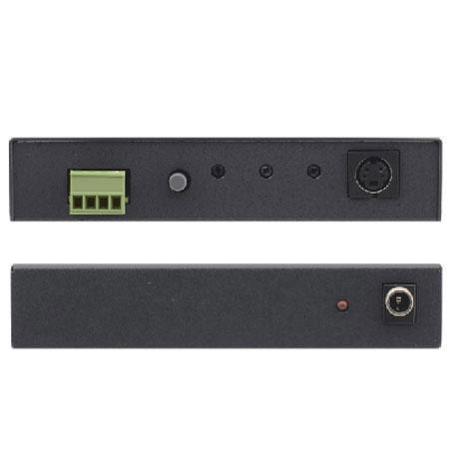

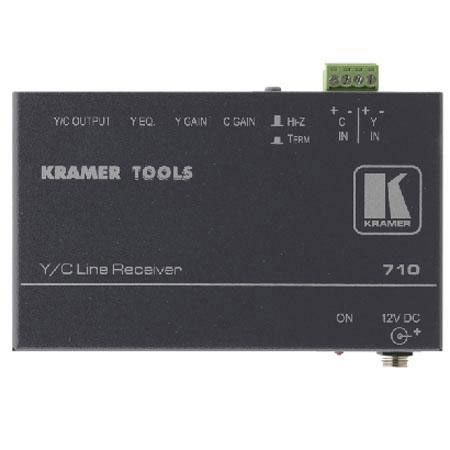

Kramer Electronics 710 Y/C  Receiver: Picture 1 thumbnail Kramer Electronics 710 Y/C  Receiver: Picture 2 thumbnail

List Price: $195.00

Free Shipping

See all shipping options

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order. learn more

31% Off

Our Price

$134.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Kramer Electronics 710 Y/C Receiver

The Kramer Electronics 710 is a twisted pair receiver for s-Video (Y/C) signals. The 709 transmitter converts an s-Video (Y/C) signal into a twisted pair signal and the 710 receiver converts the twisted pair signal back into an s-Video (Y/C) signal.

Kramer Electronics 710 Y/C Receiver Features

  • Twisted Pair: This unit receives a video signal from a twisted pair source (709) and converts it to Y/C for video usage
  • Gain and EQ: Gain and EQ adjustments are offered to optimize signal levels for the effective cable length
  • Compact Size: Less than 5" at it's longest dimension, this unit will fit in almost any production situation

Kramer Electronics 710 Y/C Receiver Specifications

Input
4-pin terminal block
Outputs
s-Video, 1-Vpp/75ohm (Y), 0.3Vpp/75ohm (c) on a 4-pin connector
Video Bandwidth (-3db)
14.3MHz, (Y) at 100m
Gain Range
-2.4 to +6.5 dB (Y), -2.7 to 15.6 dB, (EQ.), -5.8 to +7.8 dB
Non-linearity
0.07%
Diff. Gain
0.04%
Video S/N Ratio
Better than 60dB
Power Source
12V DC 40mA
Dimensions (W x D x H)
12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98")
Weight
0.26kg (0.58lbs) approx
Mfr #
710
SKU
KR710
