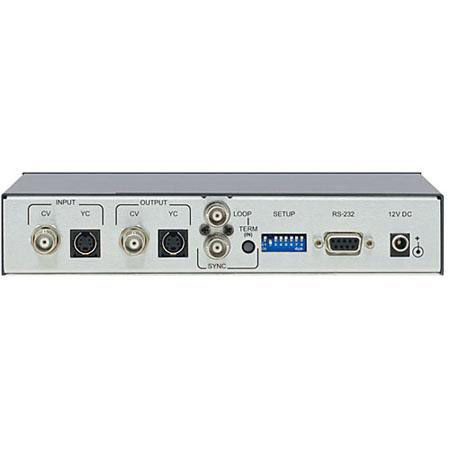

Kramer Electronics FC-400 Time Base Corrector, Analog Format Conversion

SKU: KRFC400 MFR: FC-400
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$895.00 List Price

Our Price

$716.00
Free Shipping
Qty:

Add to Wishlist

About the Kramer Electronics FC-400

The Kramer FC-400 is a time base corrector and frame synchronizer for composite and Y/C analog video signals. This device also features format conversion capabilities from composite to Y/C and Y/C to composite.

Kramer Electronics FC-400 Includes

  • Kramer Electronics FC-400 Time Base Corrector
  • Null Modem Adapter
  • AC Power Adapter
  • Kramer Electronics Warranty

Kramer Electronics FC-400 Features

  • S-Video & Composite Video Transcoding: Use this unit to simultaneously convert composite video to S-Video or vice versa
  • TBC and Frame Sync: This device offers timing correction error on both formats simultaneously with SCH phas and Sync phase adjustments
  • Test Generators: Built in test generators offer color burst and multi-burst patterns for display set-up and signal correction
  • Standalone or Rackmount: This unit works well as a standalone solution, but can also be mounted in the user's rack using a separately available rack kit

Kramer Electronics FC-400 Specifications

Inputs 1 composite video: 1Vpp/75ohm on a BNC connector; 1 YC: 1Vpp/75ohm (Y), 0.3Vpp/75ohm (C) on a 4-pin connector; 1 SYNC (genlock): looped 75ohm /Hi-Z on BNC connectors
Outputs 1 composite video: 1Vpp/75ohm on a BNC connector; 1 YC: 1 Vpp/75ohm (Y), 0.3Vpp/75ohm (C) on a 4-pin connector
Video Standards PAL B and NTSC 3.58
Digital Resolution 10 bits
Bandwidth (-0.5db) 5MHz
Diff. Gain 1%
Diff. Phase 1Deg
K-factor 1%
S/n Ratio 63dB
Luma Non-linearity 1%
Chroma/luma Delay 1ns
Controls Front-panel and RS-232; SCH phase, SYNC phase, panel lock
Power Source 12V DC, 270mA
Dimensions (W x D x H) 8.6 x 7 x 1.75" / 22 x 18 x 4.45cm
Weight 2.65 lbs / 1.2kg
