Kramer Electronics FC-8 RS-232 to Wireless LAN Controller

SKU: KRFC8 MFR: FC-8

Our Price

$340.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $495.00

Availability: Special Order Item Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order.

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • It supports multiple TCP/UDP sockets
  • Standard encryption includes WEP, WPA and WPA2
  • Its embedded web server serves web pages & applets
  • Transceiver

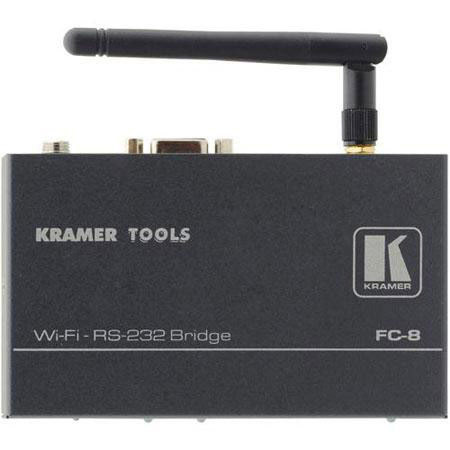

Kramer Electronics FC-8: Picture 1 regular $340.00

About Kramer Electronics FC-8

The FC-8 is a bidirectional RS-232 to WiFi (802.11b/g) interface. The unit allows any RS-232 controllable device to be controlled through a wireless LAN connection.

Kramer Electronics FC-8 Features

  • This unit offers an interface between RS-232 (9-pin D-sub) and 802.11b/g WiFi
  • It supports multiple TCP/UDP sockets
  • Standard encryption includes WEP, WPA and WPA2
  • Remote control and IP Settings offer master & slave routing modes
  • Its embedded web server serves web pages & applets

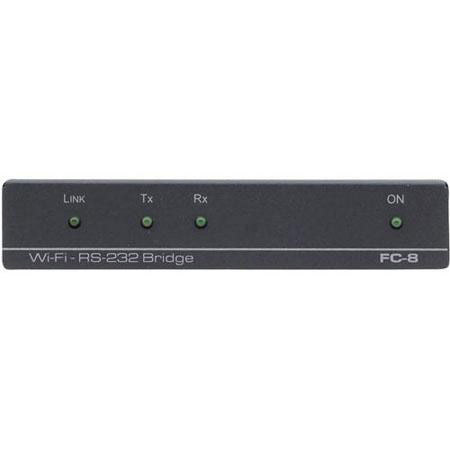

  • LED indicators provide a visual reference for signal status
  • The unit can be configured and managed via a web interface or Windows-based software
  • This device belongs to the Compact Kramer TOOLS Series and up to (3) of these units can be mounted side by side in 1U of rack space using the separately available RK-3T Rack Adapter

Kramer Electronics FC-8 Specifications

Input
RS-232 9-pin D-sub (F) connector
Output
Antenna HW: core CPU 32-bit RISC ARM7TDMI, low-leakage, 0.13 micron, running at 48MHz
Operating Voltage (input)
12V DC, 70mA. RoHS-compliant lead-free
Performance
RS-232: asynchronous character; binary; 7 or 8 data bits; odd, even, or no parity; 1 stop bit; hardware flow control (RTSH, CTSH) and software flow control
Standards Supported
IEEE 802.11b, IEEE 802.11g
Frequency
Europe: 2.412 to 2.472GHz; USA: 2.412 to 2.462GHz
Channels
Europe: 13 channels; USA: 11 channels
Transmit Power Levels
802.11b: 17dBu, 802.11g: 17dBu
Receive Minimum Input Level Sensitivity
11Mbps: -86dBu; 54Mbps: -72dBu
Internet Protocols
ARP, ICMP, IP, UDP, TCP, DHCP, DNS, NTP, SMTP
Security Protocols
WEP, WPA and WPA2
Protocols Accelerated In Hw
AES, 3DES and SHA
Application Program Interface
Kramer configuration program - Configure a factory default: Ad hoc net, permanent IP, DHCP server and serialNET mode. Kramer application Web page, enabling changing Net details, Security and IP; PROTOCOLS: HTTP Web server with two on-chip Web sites: configuration site and application site; DHCP client and server
Operating Humidity
90% max, non-condensing
Operating Temperature
-40deg. to 85deg.C (-40deg. to 185deg.F)
Dimensions (H x W x D)
1 x 4.7 x 3" (2.5 x 12 x 7.5cm)
Weight
0.7 lbs (0.3kg)
Mfr #
FC-8
SKU
KRFC8
