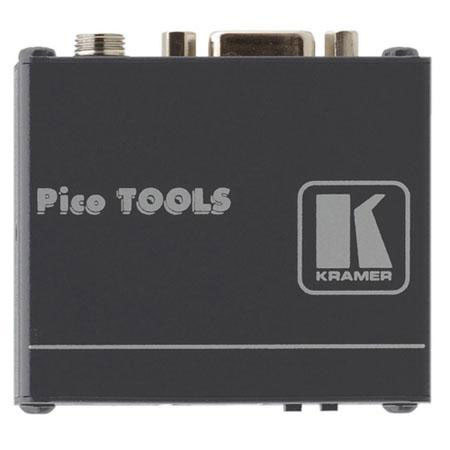

Kramer Electronics PT-110EDID Computer Graphics Video over Twisted Pair Transmitter with EDID
What's Included With This Item:
- Kramer Electronics PT-110EDID CG Video Over Twisted PairTransmitter
- Power Supply
- Kramer Electronics Warranty
The Kramer Electronics Computer Graphics Video over Twisted Pair Transmitter with EDID sends computer graphic signals up to WUXGA & 1080p via a twisted pair cable. When used with a compatible receiver, the transmitter can send signals up to 320' (100m). With EDID capture, the twisted pair transmitter copies and stores EDID information and avoids compatibility issues with the connected display if any in the future.
It features sync polarity settings, which offers H & V switches for improved display compatibility at the Cat5 output. The transmitter requires a 12V DC power supply (included) for operation. Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 150' (50m) of each other. In addition, 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor.
|Input||1 VGA/UXGA on a 15-pin HD connector|
|Outputs||1 RJ-45 LINE OUTPUT connector|
|Resolution||Up to UXGA|
|S/N Ratio||69dB (worst case)|
|Power Source||12V DC, 60mA|
|Dimensions (W x D x H)||6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1")|
|Weight||0.14kg (0.31lbs) approx|
