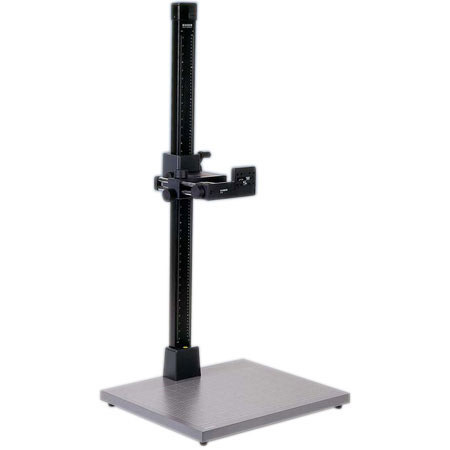

Kaiser RSX Copy Stand Kit with 50" Counterbalanced Column, RTX Arm & 20x24" Grid Baseboard
What's Included With This Item:
- #205518 20" x 24" Baseboard
- #205522 RTX Arm
- #20408 50" Counterbalanced Rack & Pinion Column
- One Year Kaiser Warranty
The Universal, Sophisticated, Flexible, Versatile, Multi-functional, Adaptable, Modular System...The RS-1 for large heavy cameras was designed specially with strength design and angular precision in mind, to meet the need of an extremely low level of vibration which is a must for perfect results. This high-quality copy stand satisfies all requirements for heavy duty work with its precise height adjustment system with weight compensation by an integrated coil spring.
You can easily position your work with the well-marked printed grid markings on the 20" x 24" solidly constructed baseboard which is finished in a glare-free non-reflecting matt black. A spirit level is integrated into the mount which makes alignment a sure thing. The feet can be individually adjusted in height. The extra wide special aluminum tube Column is also in a matt black anodized finish. It features cm and inch scales, and a Rack-and-pinion for height adjustment.
The strong pedestal incorporates a a spirit level for precisely levelling the complete unit. The RTX Arm on the RSX Stand ensures exact & secure fastening of the camera. Any type of camera system can be mounted to the RTX Arm with its horizontal, tiltable adjustability, locking knob, and front & rear Camera positions, plus the easy to change camera screw, which can quickly be changed from a 1/4" screw to a 3/8" screw if needed. A Camera positioning device allows for adjustments for all types of cameras.
|Camera Format:||35mm & Medium Format|
|Weight:||Maximum Load 7 lb/3.5 kg|
|Maximum Elevation:||50"/1.2 meter|
|Levelling Control:||Spirit level on pedestal|
|Baseboard Size:||20" x 24"/600 x 500 mm
Baseboard has individual leg adjustment
|Column:||Rack and pinion Height Adjustment|
|Dimensions:||Column Height: 50"/1m
Baseboard 18" x 20"/450mm
|Weight:||Appx 25 lb. shipping weight.|
