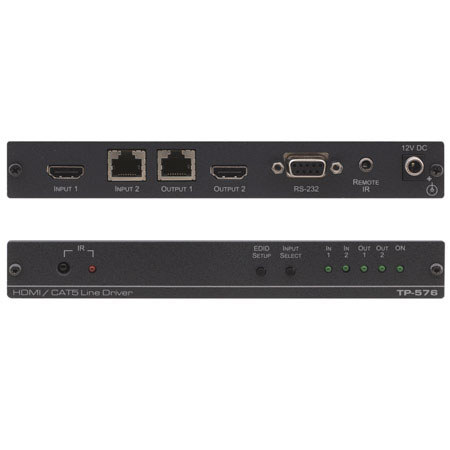

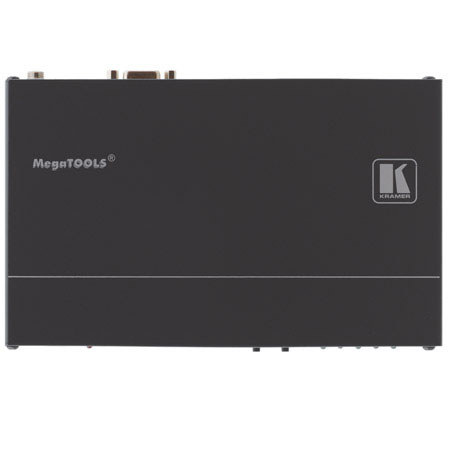

Kramer Electronics TP-576: Picture 1 thumbnail Kramer Electronics TP-576: Picture 2 thumbnail
20% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Kramer Electronics TP-576

The Kramer Electronics TP-576 is a DGKat twisted pair line driver for HDMI, bidirectional RS-232 and infrared signals. The unit receives an HDMI signal either from a local HDMI source or from a compatible twisted pair transmitter. It decodes the selected signals to the local HDMI, RS-232 and IR outputs and simultaneously transmits them to a compatible twisted pair receiver.

Kramer Electronics TP-576 Features

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel, HDMI); 4.95Gbps (1.65Gbps per graphic channel, twisted pair)
  • HDTV Compatible
  • HDCP Compliant
  • DGKat Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. Kramer strongly recommend using Kramer DGKat cables designed specifically for optimum performance
  • HDMI Support - Deep Color (on the HDMI input), x.v.Color, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD
  • 3D Pass-Through
  • I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
  • HPD Pass Thru - Passes hot plug detect signals from display to source
  • Active Input/Output LED Indicators
  • System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable
  • Cable - For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables
  • Flexible Control - Front panel, RS-232 & IR switching
  • Power Connect System - A single connection to the TP-576 powers the transmitter, receiver and line driver units
  • Compact MegaTOOLS - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter

Kramer Electronics TP-576 Specifications

1 HDMI connector; 1 twisted pair on an RJ-45 connector
1 twisted pair on an RJ-45 connector; 1 HDMI connector
1 bidirectional IR port on a 3.5mm mini jack, 1 bidirectional RS-232 port on a 9-pin D-sub connector (for local control)
Max. Data Rate
6.75Gbps (2.25Gbps per graphic channel, HDMI); 4.95Gbps (1.65Gbps per graphic channel, twisted pair)
Compliance with HDMI Standards
Supports HDMI and HDCP
RS-232 BAUD Rate
Up to 38.4kbps
EDID SETUP button, input select button
Indicator LEDs
IN 1, IN 2, OUT 1, OUT 2 and ON LEDs
Power Consumption
12V DC, 1.1A (full load, for example, when connected with TP-573 and TP-574)
Dimensions (W x D x H)
12.1 x 7.18 x 2.42cm (4.76 x 2.83 x 0.95")
0.3kg (0.66lbs) approx.
