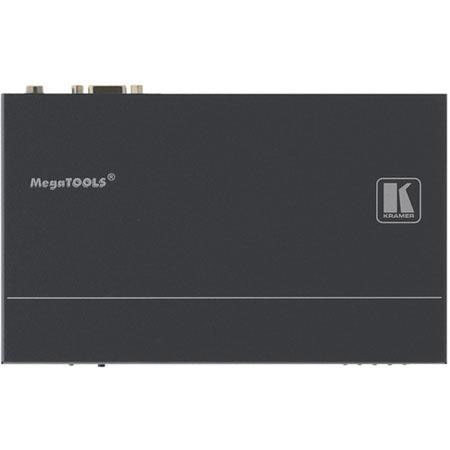

Kramer Electronics TP-582T 2x1 HDMI Plus Bidirectional RS-232, Ethernet and IR Over Twisted Pair Switcher/Transmitter

Kramer Electronics
Kramer Electronics TP-582T: Picture 1 thumbnail Kramer Electronics TP-582T: Picture 2 thumbnail Kramer Electronics TP-582T: Picture 3 thumbnail

List Price: $695.00

Free Shipping

See all shipping options

Special Order Item This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order. learn more

20% Off

Our Price

$556.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Kramer Electronics TP-582T

The Kramer Electronics TP-582T 2x1 Twisted Pair Transmitter allows you to transmit HDMI, Ethernet 100BaseT, RS-232 and IR input signals. It takes 1 of the 2 HDMI inputs and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal. The device offers a maximum data transfer rate of up to 2.25 Gbps over a distance of up to 330' (100m). Shielded twisted pair (STP) cables such as Kramer's BC-DGKat524, BC-DGKat623, or BC-DGKat723 cables can be used for optimum performance.

The TP-582T 2x1 Twisted Pair Transmitter supports HDMI v.1.4 with Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC and 3D Pass-through. EDID PassThru feature helps in passing EDID/HDCP signals from the source to the display. The Ethernet interface uses 100BaseT connectivity, which features a high-data transfer rate for efficient transfer of data, video signals, etc.

A bidirectional RS-232 interface allows commands and data flow in both directions, thus allowing status requests and control of the destination unit. In addition, the device can be controlled via front panel buttons. An LED indicator displays input selection, output, link and power. Using an optional RK-T2B rack adaptor, you can mount 2 units side-by-side in a 1U rack space. Being HDCP compliant and HDTV compatible, the TP-582T 2x1 Twisted Pair Transmitter is suitable for home theater, presentation, multimedia and staging applications.

Kramer Electronics TP-582T Features

  • Allows you to transmit HDMI, Ethernet 100BaseT, RS-232 and IR input signals
  • Takes 1 of the 2 HDMI inputs and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal
  • Maximum data transfer rate - up to 2.25 Gbps
  • System range - up to 330' (100m)
  • Supports HDMI v.1.4 with Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC and 3D Pass-through
  • EDID PassThru feature - helps in passing EDID/HDCP signals from source to display
  • Ethernet interface - 100BaseT connectivity features a high data transfer rate for efficient transfer of data, video signals, etc
  • LED indicator - displays input selection, output, link and power
  • Control via front panel buttons
  • Bidirectional RS-232 Interface - allows commands and data flow in both directions, thus allowing status requests and control of the destination unit
  • Compatible with shielded twisted pair (STP) cables such as Kramer's BC-DGKat524, BC-DGKat623, or BC-DGKat723 cables
  • RK-T2B rack adaptor for mounting 2 units side -by-side in a 1U rack space
  • HDCP compliant
  • HDTV compatible
  • Suitable for home theater, presentation, multimedia and staging applications

Kramer Electronics TP-582T Specifications

Inputs
2 HDMI connectors, 1 IR on a 3.5mm mini jack, 1 Ethernet 100BaseT on an RJ-45 connector, 1 RS-232 on a 9-pin D-sub connector, 1 remote contact closure on a terminal block connector
Output
1 RJ-45 connector
Bandwidth
Supports up to 2.25Gbps bandwidth per graphic channel
Compliance With HDMI Standard
Supports HDMI and HDCP
Power Source
5V DC, 800mA
Dimensions (W x D x H)
18.8cm x 11.4cm x 2.4cm (7.4" x 4.5" x 1.0")
Weight
0.6kg (1.4lbs)
