Kramer Electronics VA-40 4-Channel PC Horizontal Image Shift Corrector

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About the Kramer Electronics VA-40

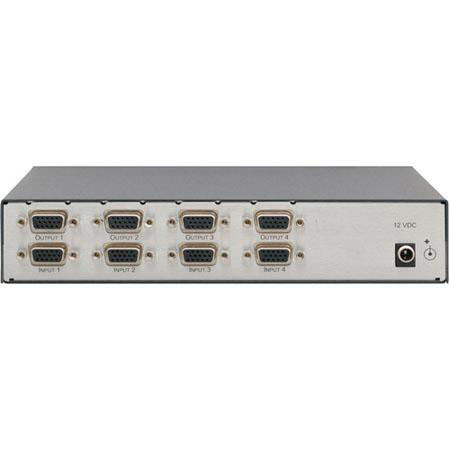

The Kramer Electronics VA-40 4-Channel PC Horizontal Image Shifter is a high-performance sync delay corrector and line driver. The system works with (4) computer graphics signals, effectively fixing sync compensation problems that arise when VGA cables are stretched long distances. The VA-40 is HDTV compatible and comes in a small, durable desktop box. When mounted side-by-side, two units can be placed in a standard 19" EIA racking system using the RK-1 rack adapter.

Kramer Electronics VA-40 Includes

  • Kramer Electronics VA-40 PC Horizontal Image Shifter
  • Power Supply
  • Kramer Electronics Warranty

Kramer Electronics VA-40 Features

  • (2) Units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter
  • 1.5GHz bandwidth
  • UXGA maximum resolution
  • HDTV compatible
  • Sync delay control
  • Stores each delay setting in non-volatile memory

Kramer Electronics VA-40 Specifications

Inputs 4 computer graphics video on 15-pin HD (F) connectors
Outputs 4 computer graphics video on 15-pin HD (F) connectors
Bandwidth (-3db) 1.5GHz
Diff. Gain 0.05%
Diff. Phase 0.05Deg
K-factor <0.05%
S/N Ratio 75dB @5MHz
Crosstalk (all Hostile) -52.5dB @5MHz
Controls Front panel input select and shift
Coupling DC
Power Source 12V DC, 50mA
Dimensions (W x D x H) 21.5cm x 16.3cm x 4.4cm (8.4" x 6.4" x 1.7")
Weight 0.6kg (1.4lbs)
