Kramer Electronics VM-1411 1:10 Composite Video & Balanced Stereo Audio Distribution Amplifier

Kramer Electronics

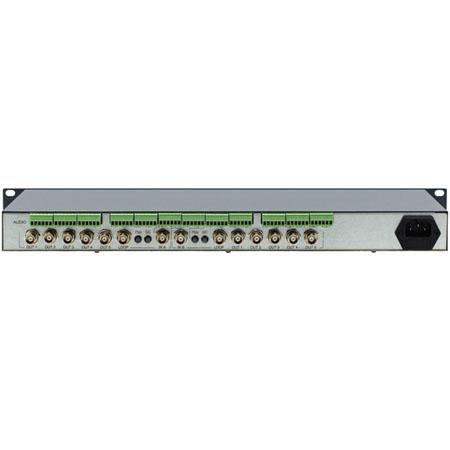

Kramer Electronics VM-1411: Picture 1 thumbnail Kramer Electronics VM-1411: Picture 2 thumbnail
Free Shipping

See all shipping options

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order. learn more

Our Price

$916.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Kramer Electronics VM-1411

The Kramer VM-1411 is a dual mode distribution amplifier for composite video and balanced stereo audio signals. It can be configured as a 1:5 distribution amplifier for s-Video (Y/C) signals with balanced stereo audio.

Kramer Electronics VM-1411 Features

  • Dual Mode - Configure as a 1:10 (Composite) or 1:5 (s-Video) DA
  • Grouped Audio Level Controls
  • Level (Gain) and EQ (Peaking) Controls
  • Looping Input
  • Selectable Input Signal Termination
  • Video AC/DC Coupling Selection
  • Standard 19" Rack Mount Size - 1U

Kramer Electronics VM-1411 Specifications

Input
2 composite/single component video, looping, 1Vpp/75 Ohm on BNCs with termination switch. 2 balanced audio stereo up to +4dBu/50k Ohm on detachable terminal blocks
Output
2x5 composite/single component video, 1Vpp/75 Ohm on BNCs. 2x5 balanced audio stereo 4dBu/50 Ohm, on detachable terminal blocks
Max. Output
Video: 1.8Vpp; Audio: +24dBu
Video Bandwidth (-3dB)
240MHz
Audio Bandwidth (-3dB)
60kHz
Diff. Gain
0.20%
Diff. Phase
0.2Deg
K-factor
0.05%
Video S/N Ratio
77dB
Audio S/N Ratio
Better than 87dB @1Vpp
Control
Front accessible trimmers for video gain and EQ. and for audio L and R levels
Coupling
DC or AC (video); AC (audio)
Audio THD
0.02%
Power Source
230V AC 50/60Hz (115V U.S.A.) 19.5VA
Dimensions
19" x 7" x 1U W x D x H rack mountable
Weight
2.9kg (6.4lbs) approx
Warranty
Kramer 7 years limited warranty
