Kramer Electronics VP-438 10 Input Analog & HDMI ProScale Presentation Digital Scaler/Switcher, S/PDIF & Stereo Audio, RS-232 & IR Control

SKU: KRVP438 MFR: VP-438
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,495.00 List Price

Our Price

$1,196.00
Free Shipping
Qty:
Add to Wishlist

About the Kramer Electronics VP-438

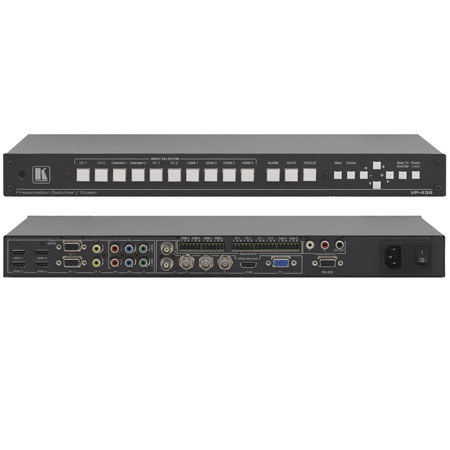

The Kramer Electronics VP-438 is a high-performance presentation scaler/switcher for HDMI, computer graphics, composite video and component video signals. It scales the video, embeds the audio and outputs the signal to the HDMI, computer graphics and RGBHV video outputs together with digital and analog stereo audio outputs.

Kramer Electronics VP-438 Includes

  • Kramer Electronics 10 Input Analog & HDMI ProScale Presentation Scaler/Switcher
  • Power Cord
  • Rack "Ears"
  • Kramer Electronics 7 Years Limited Warranty

Kramer Electronics VP-438 Features

  • Video Inputs - 4 HDMI, 2 computer graphics video on 15-pin HD connectors, 2 composite video & 2 component video on RCA connectors
  • Scaled Outputs - A single output signal simultaneously available in 3 formats: 1 HDMI, 1 RGBHV on BNC connectors & 1 computer graphics video on a 15-pin HD connector
  • 22 Output Resolutions - Up to UXGA and 1080p
  • HDTV Compatible
  • HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output
  • K-Storm Scaling Technology - Kramer's extremely high-performance scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down scaling of computer graphics video input signals
  • Multi-Standard - PAL & NTSC
  • Companion AFV (Audio-Follow-Video) - Stereo audio for every input (on terminal blocks) and individual level controls
  • Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox & panscan
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness
  • Audio Outputs - 1 S/PDIF & 1 unbalanced stereo audio on RCA connectors
  • Front Panel Control - Audio mute, video blanking & freeze frame
  • Front Panel Lockout
  • Non-Volatile Memory - Saves final settings
  • Flexible Control Options - Front panel, IR remote (included) with OSD (on-screen display) & RS-232
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Kramer Electronics VP-438 Specifications

Inputs 4 HDMI connectors (HDMI, HDCP version 1.1); 2 VGA on a 15-pin HD connector; 2 composite video on an RCA connector; 2 component video each on 3 RCA connectors; 4 HDMI, 2 PC, 2 COMP, 1 CV unbalanced stereo audio on 10 3-pin terminal block connectors
Outputs 1 RGBHV on 5 BNC connectors, 1 HDMI connector (HDMI, HDCP version 1.1), 1 VGA (RGBHV) on a 15-pin HD connector, 1 S/PDIF on an RCA connector, 1 analog stereo audio on 2 RCA connectors
H Frequency 15.63-90kHz
V Frequency 50-100Hz
RGB Syncs H and V TTL separated syncs
RGB Level 1.2Vpp max, 75Ohm load
XGA Out Level 1.2Vpp max, 75Ohm load
Output Resolutions Native, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, 1280x800, 1440x900, 1400x1050, 1600x900
Output Refresh Rates 60Hz for computer graphics resolutions; 50/60/59.9Hz (HDTV and 480i/p resolutions), 50Hz (576i/p resolutions)
Controls Input selector buttons; blank, mute, freeze buttons; menu, enter, menu arrows, reset to XGA/720p, lock buttons, RS-232, Ethernet
Operating Temperature 0deg. to +40deg.C (32deg. to 104deg.F)
Storage Temperature -40deg. to +70deg.C (-40deg. to 158deg.F)
Humidity 10% to 90%, RHL non-condensing
Power Consumption 100-240V AC, 33VA max
Dimensions (W x D) 19" x 7" / 48.26 x 17.78 cm. 1U rack mountable
Weight 2.7 kg / 5.95 lbs
