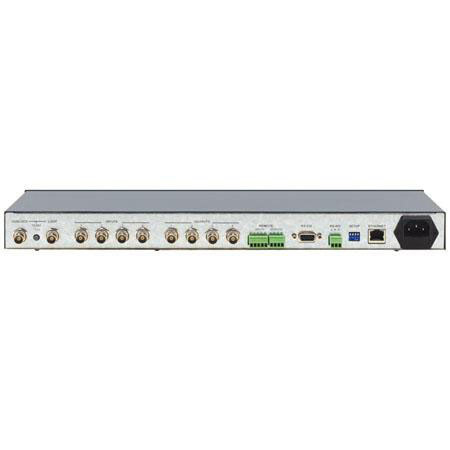

Kramer Electronics VS-44HD 4x4 HD-SDI Matrix Switcher

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$3,130.00 List Price

Our Price

Free Shipping
Add to Wishlist

About the Kramer Electronics VS-44HD

The Kramer VS-44HD is a high-performance 4x4 matrix switcher for SD-SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M) signals, as well as a dual link 2x2 matrix switcher. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.

Kramer Electronics VS-44HD Includes

  • Kramer VS-44HD 4x4 HD-SDI Matrix Switcher
  • Power Cord
  • Null-Modem Adapter
  • Kramer 7 Years Limited Warranty

Kramer Electronics VS-44HD Features

  • Max Data Rate - Up to 1.485Gbps
  • HDTV Compatible
  • Reclocking & Equalization - Automatic
  • Switching Synchronization - Synchronize either to external reference or incoming video
  • Active Input Type Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD-SDI) input signal
  • Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed
  • Take Button - Execute multiple switches all at once
  • Control - Front Panel, RS-232 (K-Router Windows-based software is included), RS-485, Ethernet, contact closure & IR remote (included)
  • Analog Sync Type - Bi-level, tri-level
  • Selectable Sync Signal Termination
  • Front Panel Control Lockout
  • Vertical Interval Switching
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Kramer Electronics VS-44HD Specifications

Input 4 SDI SMPTE-259M, 292M, 344M serial video, 75 Ohm on BNC connectors; 1 GENLOCK 75 Ohm/Hi-Z on a BNC connector
Outputs 4 equalized and reclocked SMPTE-259M, 292M, 344M outputs 75 Ohm on BNC connectors
1 looped GENLOCK 75 Ohm/ Hi-Z on a BNC connector
Max. Output Level 800mVpp/75 Ohm
Data Rate Up to 1.485Gbps
Controls Front-panel, RS-232; RS-485, ETHERNET, infra-red remote, dry contact and panel lock
Power Source Universal, 100-240V AC, 50/60Hz, 22VA
Dimensions 19" x 7" x 1U (W x D x H), rack mountable
Weight 2.6kg (5.7lbs) approx
Warranty Kramer 7 years limited warranty
