Libec LS70PDB Outside Pedestal 4-Step Counterbalance
Libec

Libec LS-70PD(B) Outside Pedestal System, H70 Fluid Head with PH-7 Extendable Pan Handle, 4-Step Counterbalance

SKU: LBLS70PDB MFR: LS70PDB
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$4,999.95
Free Shipping (USA)
Qty:

Add to Wishlist

About this item

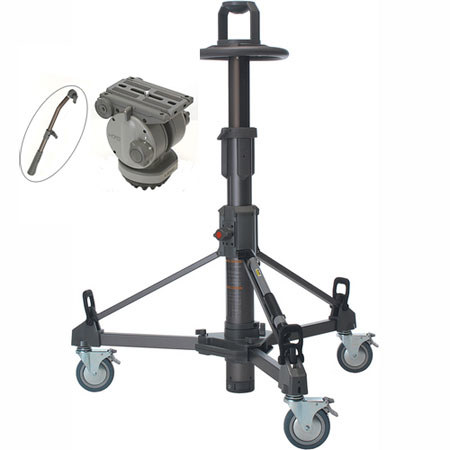

The Libec LS-70PD(B) Outside Pedestal System consists of the P110B pedestal, H70 fluid head, DL-8 dolly and two PH-7 extendable pan handles. The H70 fluid head features a 4-step counterbalance and a sliding camera plate to provide perfect balance for camera payloads up to 33 lbs (15kg). The fluid drag has 4 levels of dampening for smooth tilting and panning in various standalone or studio configurations. The H70 also comes with dual pan arm rosettes for left- or two-handed configurations.

The P110B pedestal uses a pneumatic upper column for seamless on-shot camera positioning and a mechanical lower column for pre-shot gross adjustments for camera + head payloads up to 66 lbs (30kg). The P110B comes fitted with large, 4.9" wheels for smooth movement outside the studio. As a system, the P110B provides superior camera handling in a transportable form factor without sacrificing operator comfort.

What's Included With This Item

  • Libec LS-70PD(B) Outside Pedestal System
  • H70 Fluid Head with PH-7 Extendable Pan Handle
  • P110B Pneumatic Pedestal (100mm Bowl) with DL-8 Dolly
  • Additional PH-7 Pan Handle
  • Libec Warranty

Key Features

  • 4-step fluid drag to precisely dampen any shooting style
  • 4-step counterbalance and sliding camera plate for perfect camera/lens/accessory balance regardless of configuration
  • Tilt angle of +90 deg./-75 deg
  • Equipped with a mechanical lower locking column for pre-shot positioning, and an adjustable pneumatic upper column for smooth on-shot camera positioning
  • Tracking locking mechanism comes standard with large-sized 4.9" casters
  • Folds down for convenient transport

Technical Specs

Load Capacity Pedestal: 66 lbs (30kg)
Head: 33 lbs (15kg)
Trim Weights No
Bowl Diameter/Thread 100mm
Steering Ring Diameter 308mm
Stages 2
Transit Doorway Width No
Narrow Doorway Width No
Wheel Diameter 125mm
Wheel Lock Yes
Cable Guards No
Minimum Height 32" (81.5cm) + 6.5" (16.5cm)
Maximum Height 62" (157.5cm) + 6.5" (16.5cm)
Weight 40.5 lbs (18.5kg) + 9.9 lbs (4.5kg)
