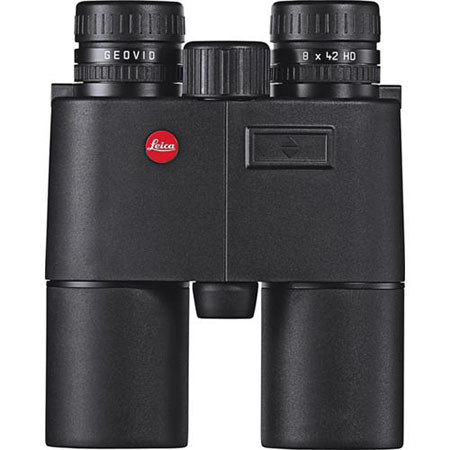

Leica 40036 8x42 HD Geovid Prism Binocular in Meters
See all Leica items

Leica 8x42 HD Geovid Water Proof Roof Prism Binocular with 7 Degree Angle of View, Meter-Version

SKU: LC842HDM
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Leica 8x42 Roof Prism Specifications

  • Magnification

    8 x

  • Front lens diameter

    42 mm

  • Exit pupil

    5.3 mm

  • Twilight factor

    18.3

  • Field of view at 1,000 m

    125 m

  • Field of view at 1,000 yds

    368 ft

  • Eye-relief

    18 mm

  • Objective angle of view

    7½

  • Close focusing distance

    Approx. 5.6 m/18.4 ft

  • Diopter compensation

    +/- 3.5 diopters

  • Distance measurement Range

    10 m to approx. 1,300 m/10 yds to approx. 1,400 yds

  • Distance measurement Accuracy

    +/- 1 m/yd up to 350 m/380 yds
    +/- 2 m/yds up to 700 m/763 yds
    +/- 0.5 % beyond 700 m/763 yds

  • Read-outs

    LED display with four digits, easily legible in any light

  • Eyepieces for eyeglass wearers

    Yes

  • Sliding eyecups

    Yes, removable, with two click stops

  • Adjustable interpupillary distance

    56-74 mm

  • Focusing

    Internal focusing via central focusing device

  • No. of lens elements (each side)

    7, with Leica AquaDura coating

  • Prism system

    Roof prism with phase correction coating P40

  • Watertightness

    Watertight to a depth of 5 m/16.5 ft

  • Housing

    Die-cast Aluminum, nitrogen-filled

  • Meter / Yard selector

    No

  • Laser

    Eye-safe invisible laser according to EN and FDA class1

  • Laser beam divergence

    2.5 x 0.5 mrad

  • Measuring time

    Max. approx. 1.4 s

  • Measuring mode

    Scanning mode

  • Power supply

    1 x 3V/Lithium-type C2R

  • Battery lifetime

    Approx. 2,000 measurements at 20½C/68½F

  • Neopren carrying strap, contoured

    Included

  • Dimensions (W x H x D)

    125 x 173 x 70 mm / 4-7/8 x 6-3/4 x 2-3/4 in

  • Weight

    Approx. 950 g/33.5 oz incl. batteries

  • Warranty

    Leica warranty

About Leica 8x42 Roof Prism

The Leica 8 x 42 Geovid Water Proof Roof Prism Binocular combines the functions of viewing and measuring in optical and electronic perfection - but their handiness also allows for ease of use in any situation. It features a 42 mm objective lens, improved light transmission from the new Fluoride glass and water repellant AquaDura lens coating.

The housing is made of cast aluminum not only to reduce weight but also for its special robustness. It is filled with nitrogen to eliminate fogging of the lenses. The precise processing, typical of Leica, also guarantees that a Leica Geovid HD remains fully operational even during the most inclement weather - even down to 16.5 ft (5m) deep in water. Its folding lines and ergonomic design make the Geovid HD extraordinarily compact and space-saving.

Leica 8x42 Roof Prism Features

  • Steady image guaranteed because of 8x magnification
  • Field of view of 125 m at 1000 m

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Leica 8 x 42 Geovid Water Proof Roof Prism Binocular
  • Neoprene Carrying Strap
  • Eyepiece Cover
  • Protective Front Lens Cover
  • Battery
  • Cordura Case
  • Leica Warranty
