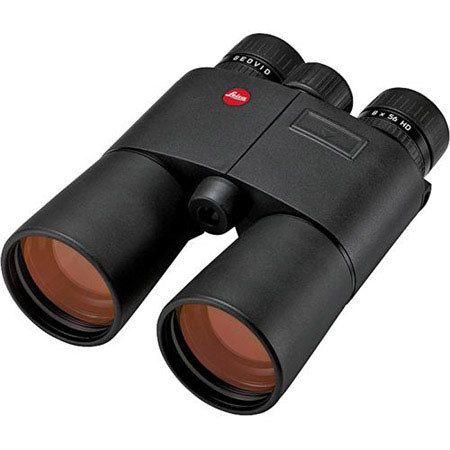

Leica 8x56 HD Geovid Water Proof Roof Prism Binocular with 6.8 Degree Angle of View, Meter-Version

Leica
SKU: LC856HDM MFR: 40041
Leica 8x56 Roof Prism: Picture 1 thumbnail Leica 8x56 Roof Prism: Picture 2 thumbnail

Our Price

$2,849.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Leica 8x56 Roof Prism

The Leica 8 x 56 HD Geovid Water Proof Roof Prism Binocular features a 56 mm objective lens, improved light transmission from the new Fluoride glass and water repellant AquaDura lens coating. The Leica Geovid 8 x 56 HD is optimized for twilight and low light conditions via the 56mm lens diameter and is unparalleled in terms of lightness and compactness.

It delivers images that are extremely rich in contrast, color neutral and sharp from edge to edge. It opens up a new dimension in viewing and identifying the finest details over long distances - especially in poor lighting conditions.

Leica 8x56 Roof Prism Features

  • 7 mm exit pupil
  • Steady image with less shake because of 8x magnification
  • Only 182 mm high and 1.100 g weight
  • Especially developed for the highseat user

Leica 8x56 Roof Prism Specifications

Magnification
8 x
Front lens diameter
56 mm
Exit pupil
7 mm
Twilight factor
21.2
Field of view at 1,000 m
118 m
Field of view at 1,000 yds
357 ft
Eye-relief
18.5 mm
Objective angle of view
6.8°
Close focusing distance
Approx. 5.6 m/18.4 ft
Diopter compensation
± 3.5 diopters
Distance measurement Range
10 m to approx. 1,300 m/10 yds to approx. 1,400 yds
Distance measurement Accuracy
± 1 m/yd up to 366 m/400 yds
± 2 m/yds up to 732 m/800 yds
± 0.5 % beyond 732 m/800 yds
Read-outs
LED display with four digits, easily legible in any light
Eyepieces for eyeglass wearers
Yes
Sliding eyecups
Yes, removable, with two click stops
Adjustable interpupillary distance
56-74 mm
Focusing
Internal focusing via central focusing device
No. of lens elements (each side)
7, with AquaDura coating
Prism system
Roof prism with phase correction coating P40
Watertightness
Watertight to a depth of 5 m/16.5 ft
Housing
Die-cast aluminium, nitrogen-filled
Meter / Yard selector
No
Laser
Eye-safe invisible laser according to EN and FDA class1
Laser beam divergence
2.5 x 0.5 mrad
Measuring time
Max. approx. 1.4 s
Measuring mode
Scanning mode
Power supply
1 x 3V/Lithium-type C2R
Battery lifetime
Approx. 2,000 measurements at 20°C/68°F
Neopren carrying strap, contoured
Included
Dimensions (W x H x D)
135 x 182 x 68 mm / 5-1/4 x 7-1/8 x 2-5/8 in
Weight
Approx. 1,100 g / 38.8 oz incl. batteries
Warranty
Leica warranty
Mfr #
40041
SKU
LC856HDM
