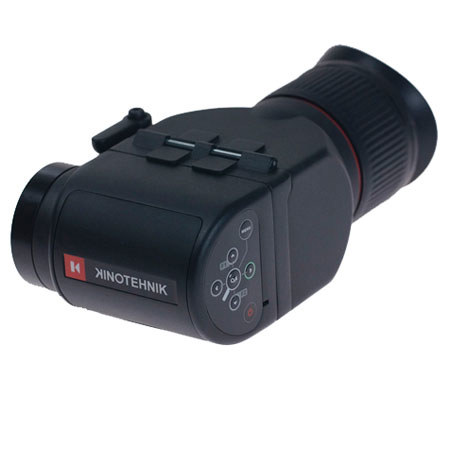

LCDVF Kinotehnik LCDVFe Electronic Viewfinder, Universal EVF with Retina-Like TFT LCD

See all LCDVF items
LCDVF LCDVFe: Picture 1 thumbnail LCDVF LCDVFe: Picture 2 thumbnail LCDVF LCDVFe: Picture 3 thumbnail LCDVF LCDVFe: Picture 4 thumbnail LCDVF LCDVFe: Picture 5 thumbnail LCDVF LCDVFe: Picture 6 thumbnail LCDVF LCDVFe: Picture 7 thumbnail LCDVF LCDVFe: Picture 8 thumbnail LCDVF LCDVFe: Picture 9 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

LCDVF LCDVFe: Picture 1 regular $931.00


The LCDVF LCDVFe Electronic Viewfinder is a universal production style electronic viewfinder with Retina-like display, superior ergonomics and real-time response unique to the industry. At its heart is an Altera Cyclone FPGA integrated circuit with very high memory-to-logic and DSP-to-logic ratios, enabling lightning fast startup and HD video processing at highest possible picture quality, while retaining exceptional energy efficiency. This amount of firepower is usually seen in sci-fi movies.

The VF repositions and shoots in no time, whether over the crowd, at waist level or on your shoulder (no time is lost when re-configuring). Opening the flip, changing the battery pack and many other functions can be fully operated with just one hand.


  • Reposition and shoot in no time: over the crowd, waist level or on your shoulder - no time lost when re-configuring the EVF. Can be fully operated with just one hand - opening the flip loupe, changing battery pack etc
  • Live video processing features for precise image evaluation: Focus assist via color peaking, user adjustable exposure assist zebras, 1:1 pixel zoom feature with positionable recall
  • Real-time image processing: virtually no latency
  • Hardware supports jitter-free panning
  • Optional remote control via external USB joystick (availability TBA)
  • On-board interchangeable batteries (4xAA)
  • Universal power supply for unmatched powering flexibility from 4V to 17V - reverse polarity protected
  • Economy mode for extended battery life, intelligent sleep option built-in with LED indicator light
  • Run time up to 6 hours
  • Encased battery compartment to avoid battery drain in extreme cold
  • Super crisp 24bit 3" LCD screen with 800x480 resolution (1.2 megapixels)
  • Sleek yet rugged physical design and maximized usability after hundreds of hours of testing
  • Optical construction offering generous diopter compensation. Vacuum laminated double element achromatic lens, utilizing ULD glass element for perfect image quality
  • Separate HDMI transmitter for untouched HDMI loop through with audio for recording uncompressed video to external devices. The HDMI transmitter can be switched off for conserving battery power

LCDVF LCDVFe Specifications

Screen Size
3-inch TFT LCD (7.6 cm)
800 x 480
Pixel Count
1.2 megapixels
Pixel Density
311 PPI
Color Depth
24-bit 16.7M colors
1x full-size heavy-duty HDMI input
1x full-size heavy-duty HDMI output
HDMI loop-through with audio
Mini-USB PC/Mac connection
Mini-USB dedicated remote connection
Supported Video Formats
480p59.94, 480pH59.94, 480i59.94, 480iH59.94, 576p50, 576pH50, 576i50, 576iH50, DMT0659p59.94
720p24, 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60
Diopter Range
-2..+2. Additional 46mm filter threads for individual diopter correction
On-board: 4x AA batteries (6 hour run-time on 2600mAH batteries)
External power: 4-17V, reverse polarity protected
Power drain: 1.9W
6.6x3.4x2.5" (16.76x8.64x6.35cm)
0.77 lbs (350 g)
Mfr #
