Linhof

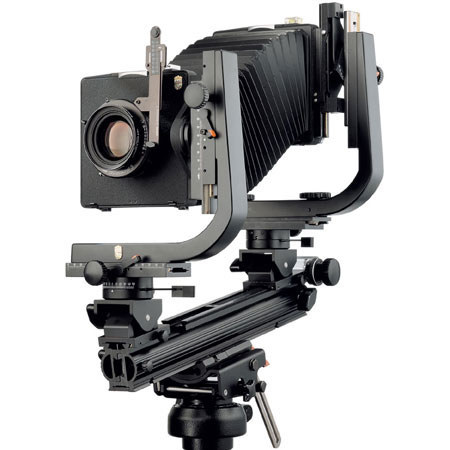

Linhof Kardan Master GTL 4x5" / 9x12cm Camera

SKU: LF97 MFR: 000097
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$10,739.95
Free Expedited Shipping
Qty:
Add to Wishlist

About the Linhof Kardan Master GTL

Most sophisticated and technically advanced monorail system in the LINHOF line, a superbly engineered heavy duty studio camera with all the proven advantages of the KARDAN design principle and the added convenience of yaw-free indirect displacements. The modular KARDAN GTL combines maximum stability with extended adjustment facilities and extremely smooth movements with solid brass micro drives offering the greatest amount of corrective control of any camera system available today. It utilizes direct displacements to their greatest extent and allows yaw-free indirect displacements with inclined monorail, especially advantageous for close-up table top work, so that each user has total freedom of choice and can select his specific displacement technique, including the optional use of freely adjustable asymmetrical (floating axis) swings and tilts on the rear standard. Built-in depth-of-field optimizer.

Linhof Kardan Master GTL Includes

  • basic unit, consiting of: Telescoping monorail 450-625 mm / 18 x 28", L-type front and back standards with spirit levels, Normal Kardan bellows 45, 500 mm/20", Snap-on Kardan auto back incl. groundglass frame with groundglass, cm-grid.
    not included: lens/lensboard

Linhof Kardan Master GTL Features

  • yaw free system with telescoping rail. Available in 4x5 to 8x10" AMS 5 ratio depth of field calculator and continuously variable assymetrical tilts and optical tilts.

Linhof Kardan Master GTL Specifications

Type Monorail Camera
Format 4x5
Camera Movements -
Rise Front: 130mm rise(70mm geared + 60mm manual), 70mm fall(50mm geared + 20mm manual), Rear(geared): 80mm rise, 46mm fall
Swing 50 degrees left, 50 degrees right - capable of 360 degrees of swing
Tilt 360 degrees
Lateral shift Front: 2" (50mm) left, 2" (50mm) right, Rear: 2" (50mm) left, 2" (50mm) right
Back swing 50 degrees left, 50 degrees right - capable of 360 degrees of swing
Back tilt 360 degrees - limited only by the bellows + 40 degrees forward/40 degrees backward base tilt
Camera back 4x5" Vertical/Horizontal quick-change International Standard Graflok
Track extention Telescopes from 18-25"
Bellows Interchangeable
Bellows extention Min.: 3" (7.5cm) with wide-angle bellows
Max.: 22.6" (575mm)
Lens panel Linhof Kardan Type 162x162mm
Dimentions 17.7 x 11.2 x 17.5" (450 x 285 x 445mm)
Weight 18.25 lbs. (8.3kg)
