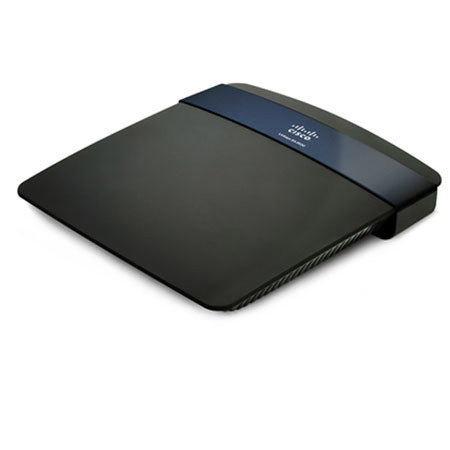

Linksys EA3500 Dual Band N750 Router with Gigabit and USB, 2.4 GHz and 5 GHz Radio Frequency

SKU: LKEA3500 MFR: 247933900
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the Linksys EA3500

The Linksys Dual-Band N750 Router offers fast speed to connect your computers, Internet-ready TVs, game consoles and other Wi-Fi devices at transfer rates up to 300 + 450 Mbps speed for an optimal home network experience. Built with leading 802.11n wireless technology, the Linksys EA3500 offers superior range to create a powerful wireless network. Enhanced MIMO antenna array boosts signal strength to provide exceptional coverage and reliability so you can enjoy your wireless network from anywhere in your home.

Double your network bandwidth with Dual-Band N (2.4 and 5 GHz) designed to avoid interference and maximize throughput for smoother and faster HD video streaming, file transfers and wireless gaming. Use the 4 Gigabit Ethernet (10/100/1000) ports for quick file sharing, 10x faster than standard Ethernet, between other Gigabit enabled devices like computers, hard drives and servers. The USB port lets you add a range of devices such as storage and printers to share files at home or over the Internet for greater access to more information.

Linksys EA3500 Includes

  • Linksys Dual-Band N750 Router
  • CD-ROM with Setup Software and Resources
  • Ethernet Cable
  • Power Adapter
  • Linksys 1 Year Limited Warranty

Linksys EA3500 Features

  • Dual-band wireless supports high bandwidth applications such as video streaming or file sharing
  • Wireless-N technology uses multiple radios to create a robust signal that travels farther and faster, with reduced dead spots
  • Two spatial streams (2TX and 2RX) for 2.4G band and three spatial streams for 5G band (3TX and 3RX)
  • All ports support Gigabit speed and Auto-Crossover (MDI/MDI-X) - no need for crossover cables
  • Supports up to 300+450Mbps wireless speed
  • Storage Link transforms any USB storage device into a NAS
  • Guest Access feature allows your visitors access to the Internet, but not your computers or data
  • Supports up to 128-bit wireless encryption and SPI firewall
  • Compatible with Wireless-A (802.11a), Wireless-B (802.11b) and Wireless-G (802.11g) standards

Linksys EA3500 Specifications

Technology Wireless-N
Bands Simultaneous 2.4 GHz and 5 GHz
Transmit/Receive 2 x 3 for 2.4 GHz, 3 x 3 for 5 GHz
Antennas 6 internal
Software Setup CD Install
Cisco Connect Software Yes, App Enabled
USB Port Yes, Shared Storage and Virtual USB
Standards 802.11n, 802.11a, 802.11g, 802.11b, 802.3, 802.3u, 802.3ab
Switch Port Speed 10/100/1000 Mbps (Gigabit Ethernet)
Ports Internet, Ethernet (1-4), USB, Power
Buttons Reset, Wi-Fi Protected Setup
LEDs Power, Ethernet (1-4)
No of Antennas 6 total, 3 internal antennas per each 2.4GHz & 5GHz radio band
Detachable No
Modulations 802.11b: CCK, QPSK, BPSK
802.11g: OFDM
802.11a: OFDM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Receive Sensitivity 2.4 GHz
802.11b: -87 dBm @ 11 Mbps (Typical)
802.11g: -77 dBm @ 54 Mbps (Typical)
802.11n (20 MHz): -72 dBm @ MCS15 (Typical)
802.11n (40 MHz): -69 dBm @ MCS15 (Typical)
5 GHz
802.11a: -74 dBm @ 54 Mbps (Typical)
802.11n 20 MHz: -67 dBm @ MCS23 (Typical)
802.11n 40 MHz: -64 dBm @ MCS23 (Typical)
Antenna Gain in dBi 2.4 GHz (Dipole Antennas)
Antenna 1 = 2.70 dBi
Antenna 2 = 3.70 dBi
Antenna 3 = 4.95 dBi
5 GHz (Dipole Antennas)
Antenna 1 = 4.46 dBi Antenna 2 = 3.23 dBi
Antenna 3 = 3.88 dBi
Security WEP, WPA, WPA2
Security key bits Up to 128-bit encryption
Power 12V, 2A
Certification FCC, IC, CE, Wi-Fi a/b/g/n, Windows 7
Operating Temp. 0deg. C to 35deg. C (32deg. F to 95deg. F)
Storage Temp. -20deg. C to 60deg. C (-4deg. F to 140deg. F)
Operating Humidity 10% to 80% relative humidity and Non-Condensing
Storage Humidity 5% to 90% Non-Condensing
Minimum System Requirements PC: Wi-Fi enabled PC with CD or DVD drive, running Windows XP SP3, Windows Vista SP1 or later, or Windows 7
Mac: Wi-Fi enabled Mac with CD or DVD drive, running OS X Leopard 10.5.8 or later, Snow Leopard 10.6.1 or later, or Lion 10.7 or later
Web Browser: Internet Explorer 7, Safari 4, or Firefox 3 or higher for optimal browser-based configuration
Dimensions (W x H x D) 170 x 25 x 190 mm / 6.69 x 0.98 x 7.48"
Weight 0.216 kg / 0.47 lbs
