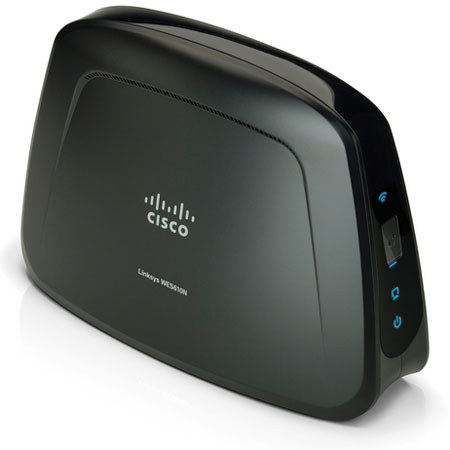

Linksys WES610N 4-Port Dual-Band N Entertainment Bridge

SKU: LKWES610N MFR: WES610N
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$49.99
Qty:

Add to Wishlist In Stock

About the Linksys WES610N

The WES610N 4-Port Dual-Band N Entertainment Bridge from Linksys is an exceptional way to stream media or data to your Ethernet-ready computers or media devices via your wireless network. Because this bridge supports wireless -N, -B, -G and -A standards, it can wirelessly connect to routers or other bridges that support these standards. The bridge can transfer data at a maximum rate of 300Mbps. Once your router is connected to the bridge, you can use the bridge's four Fast Ethernet ports to connect a multitude of Ethernet-enabled devices to your network .Those devices include Windows, Mac, or Linux computers as well as HDTVs, game consoles, Blu-ray players and more.

This bridge operates on both the 2.4GHz and 5GHz bands so as to reduce interference on your network. Dual band allows you to stream latency-sensitive traffic, such as video or VoIP, on the 5GHz band. Plus, with the built-in Quality of Service prioritization, you can have the bridge ensure that all latency-sensitive traffic is forwarded first on the 5GHz band. In terms of security, the bridge features a Wi-Fi Protected Setup button so as to immediately setup a connection with your router. In addition, the bridge utilizes WPA2 security to keep your network protected.

Linksys WES610N Includes

  • Linksys WES610N 4-Port Dual-Band N Bridge
  • CD-ROM with Documentation Resources
  • Ethernet Cable
  • Power Adapter
  • Linksys 1 Year Limited Warranty

Linksys WES610N Features

  • High Speed: The Linksys WES610N provides fast wireless connectivity for up to four Ethernet-enabled HDTVs, Blu-ray players, game consoles, or other Wi-Fi devices. With transfer rates up to 300 Mbps, you'll enjoy a powerful networking experience for streaming video, sharing photos, or gaming online
  • Superior Range: Built with leading 802.11n wireless technology, the Linksys WES610N offers superior performance and range. Multiple MIMO (multiple input, multiple output) antennas help create a strong, stable link to your router for reliable connectivity of your home theater devices
  • The Power of Dual-Band: Get superior wireless performance with Dual-Band N (operates in either the 2.4 or 5 GHz radio bands) designed to avoid interference from competing networks and devices
  • HD/3D Ready: Link HDTVs, media players, game consoles and more to your router and Internet connection. QoS traffic prioritization technology delivers time-sensitive traffic efficiently so you can enjoy smooth video, music streaming and gaming performance
  • Push-Button Setup: The Wi-Fi Protected Setup button on your router and bridge is designed to get you setup easily and more securely. Once the wireless connection to your router has been established, simply plug any wired Ethernet device to the bridge and enjoy instant wireless connectivity
  • Advanced Security: Keep Wi-Fi freeloaders at bay with the network protection of WPA2 security

Linksys WES610N Specifications

Standards IEEE 802.3u, 802.11g, 802.11b, 802.11a, draft 802.11n
Network Protocol TCP/IP
Data Rate Up to 300Mbps
Frequency Range 2.4GHz
5GHz
Security WEP, Wi-Fi Protected Access (WPA), Wi-Fi Protected Access 2 (WPA2)
Security Key Bits: Up to 128-bit encryption
Modulation 802.11a: OFDM/BPSK, QPSK, 16-QAM, 64-QAM
802.11b: CCK/QPSK, BPSK
802.11g: OFDM/BPSK, QPSK, 16-QAM, 64-QAM
802.11n: OFDM/BPSK, QPSK, 16-QAM, 64-QAM
RF Power 802.11a: 15dBm (typical) @ 54Mbps
802.11b: 19dBm (typical) @ 11Mbps
802.11g: 16dBm (typical) @ 54Mbps
802.11n: 18dBm (typical) @ MCS15, 2.4GHz
802.11n: 16dBm (typical) @ MCS15, 5GHz
Receive Sensitivity 802.11a: -72dBm (typical) @ 54Mbps
802.11b: -85dBm (typical) @ 11Mbps
802.11g: -73dBm (typical) @ 54Mbps
802.11n (20MHz): -75dBm (typical) @ MCS15
802.11n (40MHz): -69dBm (typical) @ MCS15
Antenna 3 (internal)
Antenna Gain Up to 1dBi (max)
Power Over Ethernet No
Ports 4x Fast Ethernet Ports
Certifications FCC, UL/cUL, ICES-003, RSS210, CE, Wi-Fi (IEEE 802.11a/b/g/draft n), WPA2, Wi-Fi Protected Setup, WMM
System Requirements Wireless: Existing a/b/g/n wireless router or access point
Ethernet Port: Active Ethernet port on device to be connected
Web Browser: Internet Explorer 7, Safari 4, or Firefox 3 or higher for optional browser-based configuration
HD/3D Video Streaming: Requires a minimum of 100Mbps transfer speed. Actual performance may vary
Operating Temperature 32 Deg. to 104 Deg.F / 0 Deg. to 40 Deg.C
Operating Humidity 10% to 85% Non-condensing
Storage Temperature -4 Deg. to 140 Deg.F / -20 Deg. to 60 Deg.C
Storage Humidity 5% to 90% Non-condensing
Software setup CD Install
Power Requirements 12V, 1A
Dimensions (W x H x D) 6.97 x 5.04 x 2.68" / 17.7 x 12.8 x 6.8cm
Weight 0.65 lb / 0.3kg
