Line 6 StageSource L3s Powered Subwoofer

SKU: LN6990320315 MFR: 99-032-0315

Our Price

$1,199.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: Special Order Special Order - Usually ships in 3-7 days.
Your card will only be charged once item ships.

Free Shipping

See all shipping options

Ways To Save

More Buying Options

Product Highlights

  • 1200 Watt bi-amped, subwoofer
  • Precision 2 x 12" bass-reflex design
  • Three threaded pole mounts for maximum flexibility
  • Dual-braced tour-grade plywood construction
  • Multi-function design for true scalability
  • Multiple handling points
  • Tilt-and-go portability
  • 12" Subwoofer

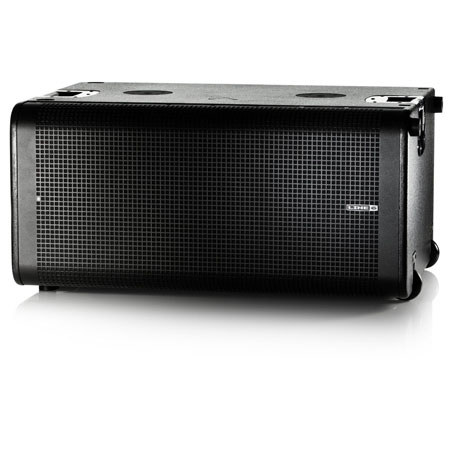

Line 6 L3s: Picture 1 regular $1,199.99

About Line 6 L3s

The Line 6 StageSource L3s Powered Subwoofer is a professional 2-way active subwoofer speaker for front-of-house, touring bands, DJs and other sound reinforcement applications. The L3s produces up to 1200 watts of power and compliments the Line 6 StageSource L3t and L3m active loudspeakers. The StageSource's Smart Speaker Modes optimize the speaker's performance for use in various applications.

There are P.A. and DJ modes with Reference, High Punch, Extended bass and Ultra Bass settings for optimizing sound at the touch of a button. The L3s also features a built-in crossover with 80, 100 & 120Hz and off settings. Multiple Line 6 StageSource series speakers are easily networked via L6 Link. Loudspeakers will automatically self-configure, pan stereo signals, adjust Smart Speaker modes and perform system-wide optimization. The roadworthy cabinet features dual-braced, heavy-duty plywood and a tour-grade steel grille with protective screen backing that protects the drivers from impact damage.

Line 6 L3s Features

  • 1200-watt bi-amped, subwoofer
  • Precision 2 x 12" bass-reflex design
  • Smart Speaker Modes for great live sound in any live sound situation
  • L6 LINK digital networking for multi-speaker setups
  • Three threaded pole mounts for maximum flexibility
  • Dual-braced tour-grade plywood construction
  • Multi-function design for true scalability
  • Multiple handling points
  • Tilt-and-go portability
  • Digital networking with StageScape M20d for the ultimate dream stage

Line 6 L3s Specifications

System Type
Dual 12" bi-amplified subwoofer
Frequency Response
34Hz to 2.8kHz, (Reference/P.A. speaker mode, half space) (-10dB)
38Hz to 910Hz, (Reference/P.A. speaker mode, half space) (±3dB)
Drivers
Low-pass frequencies: 80Hz, 100Hz, 120Hz, off (user-selectable)
Low-frequency transducers: 2x 12" woofer, 3" diameter voice coil, 4ohm impedance
Electrical Input
Input types: Line-level XLR-1/4", balanced / L6 LINK XLR
Input impedance: 100 kOhms balanced
Max input levels: +20dBu
Onset of limiting: +11 dBu input (Reference/P.A. Speaker Mode, Master Level control at center-detent)
-1 dBu input (Reference/P.A. Speaker Mode, Master Level control at maximum)
Electrical Output
Output types: Stereo Line-level XLR-1/4", balanced / L6 LINK XLR
Output impedances: 680 Ohms balanced
Controls: Master Level, Speaker Mode, Crossover Frequency, Polarity
Indicators: Signal Present/Clip, Limit, Polarity Inversion, 4x Crossover Frequency, 4x Speaker Mode, L6 LINK Status
Output high-pass frequencies: 80 Hz, 100 Hz, 120 Hz, Off (user-selectable)
DSP
Speaker modes: P.A./Reference, P.A./High Punch, Playback/Extended Bass, Playback/Ultra Bass
Transducer Protection: Excursion limiting, thermal limiting
Digital networking: L6 LINK Intelligent Speaker Networking System
Sensors: Power amp temperature, power supply temperature
Amplifier: Output Channels
Low Frequency 1 (LF1), Low Frequency 2 (LF2)
Amplifier: Type
(LF1) Class D, (LF2) Class D
Amplifier: Output Power
(LF1) 622W, (LF2) 622W
Amplifier: Voltage Range
100 - 240 VAC, ± 10%, 50/60 Hz, automatic voltage selection
Consumption: 250 watts (1/8th power)
Amplifier: Cooling
Digitally-controlled, variable speed 50mm fan
Amplifier: Protection
Output overcurrent, over temperature, DC fault
Mechanical
Enclosure: 18mm multi-ply hardwood, textured black paint, bass reflex design
Grille: 18 gauge perforated steel, black powder coat finish
Pole Mount Plates: M20 x 2.5 thread, qty: 3
Pullback point: M10 x 1.5 threaded insert, qty: 1
Dimensions (HxWxD)
34.12x16.50x23.25" (86.66x41.91x59.05cm)
Weight
82.50lbs (37.42kg)
Mfr #
99-032-0315
SKU
LN6990320315
