| Headset: Wearing styles |
Ear hook, headband, neckband (available as an accessory) |
| Headset: Operating environment |
-10Deg. C to +60Deg. C (when charging: 0Deg. C to +45Deg. C); Up to 95% RH non-condensing |
| Headset: Call control |
Multifunction button supporting answer call, end call, voice-activated dialing, reject call, redial and swap held calls; docking operations can also answer and end calls |
| Headset: Volume control, microphone mute |
Controlled via touch-panel on headset |
| Headset: Visual indicator |
Multicolor LED indicates call status, battery level, pairing status and other events |
| Headset: Audio indicators |
Tones to indicate incoming calls, low battery, volume level, microphone muting & other events; target phone can be indicated by English voice tag or target-specific melody |
| Headset: Bluetooth version |
BT 2.1 |
| Headset: Bluetooth range |
Up to 100m when paired with a Bluetooth wireless technology Class 1 device; up to 25m when paired with a Bluetooth wireless technology Class 2 device |
| Headset: Bluetooth profiles |
Headset (HSP 1.1), hands-free (HFP 1.5), device identification (DIP 1.3) |
| Headset: Bluetooth pairing table |
Up to 8 trusted devices |
| Headset: Bluetooth connections |
Up to 2 |
| Headset: Microphone |
Dual Noise Blackout microphones |
| Headset: Sound quality |
DSP noise reduction; echo cancellation; tone control; narrowband and wideband audio (selectable per phone type) |
| Headset: Firmware update |
Downloadable from PC |
| Headset: Recharge |
While docked in the Travel Charger and connected to a wall socket; PC (via USB) or car socket |
| Headset: PC-based configuration |
All settings can be stored and loaded from a PC for backup and mass deployment |
| Headset: System Requirements |
Windows XP Windows Vista Windows 7 |

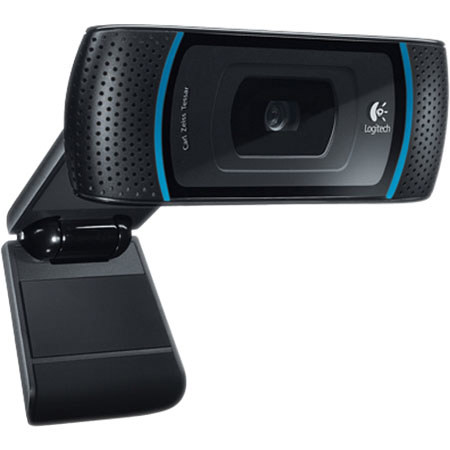

| Webcam: Image Sensor |
Native 5-MP HD sensor |
| Webcam: Focus |
Autofocus System |
| Webcam: Lens |
Carl Zeiss Glass Lens |
| Webcam: Image Capture |
5MP |
| Webcam: Video Capture |
HD Video (720 x 1280) at 30fps VGA Video (640 x 480) at 30fps CIF (352 x 288) at 15fps |
| Webcam: Frame Rate |
30fps in HD or VGA Video 15fps in CIF |
| Webcam: Microphone |
Built-in dual microphones with RightSound Technology |
| Webcam: Compliant Standards |
UVC Compliant |
| Webcam: Connector |
USB 2.0 Cable |
| Webcam: System Requirements 1 |
UVC mode (No software installation required): Windows XP, Windows Vista, or Windows 7 Drivers provided for 32-bit and 64-bit versions of Windows XP, Windows Vista, or Windows 7 Microsoft Office Communicator 2007 R2 or (higher) video conferencing requirements: OS: Windows XP (SP2 or higher), Windows Vista or Windows 7 (32-bit or 64-bit versions) HD video (720 x 1280) at 30 fps CPU: Quad core 2.0 GHz or higher RAM: 2 GB or more Upstream bandwidth: 1.5 mbps |
| Webcam: System Requirements 2 |
VGA video (640 x 480) at 30 fps CPU: Dual core 1.9 GHz or higher RAM: 1 GB or higher Upstream bandwidth: 600 kbps For CIF (352 x 288) at 15fps CPU: Single core 1.5GHz or higher RAM: 512 MB or higher Upstream bandwith: 250 kbps |
| Dimensions |
Headset: 18 x 76 x 22.5mm (0.71 x 3 x 0.88 in) |
| Weight |
Headset: 15g (0.53 oz) (without earhook), 18g (0.63 oz) (with earhook) |
