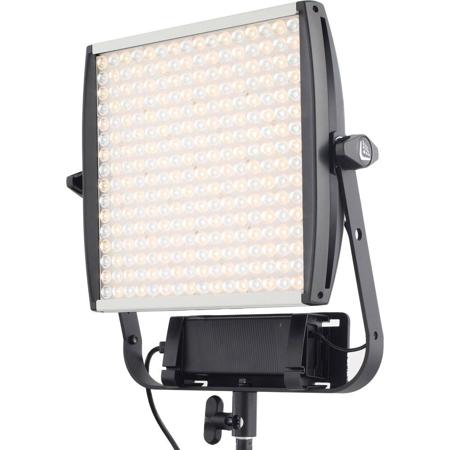

Litepanels Astra 1x1 Bi-Color LED Light, Tungsten-Daylight

Litepanels
SKU: LPA1X1BCLED MFR: 935-1003
Litepanels Astra 1x1: Picture 1 thumbnail Litepanels Astra 1x1: Picture 2 thumbnail Litepanels Astra 1x1: Picture 3 thumbnail Litepanels Astra 1x1: Picture 4 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $110.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $139.95
Made in USA

Our Price

$1,350.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Litepanels Astra 1x1

The Litepanels Astra 1x1 Bi-Color panel builds on the legacy of the original 1x1 fixture, which revolutionized the lighting industry. This innovative daylight to tungsten tunable color model was years in the making, with every design element of this next generation panel being meticulously crafted.

Following the Litepanels tradition of a one square foot form factor, the ASTRA series is designed with select premium quality, high CRI, surface mount LEDs and paired with custom designed TIR optics. These tightly binned LEDs and fine-tuned optics provide the ASTRA 1x1 with superior color reproduction and a light output that is up to four times brighter than traditional LED panels. This higher intensity results in a longer throw and illuminates a wider area, allowing the panel to com-pete with strong exterior light sources or illuminate a large area effectively with just a single fixture.

Litepanels Astra 1x1 Features

  • Flexible, modular concept: Field replaceable fan module and external power supply
  • Modern fixture design: Easily identifiable and ergonomic manual controls for dimming, color, and power status
  • Modern fixture design: Aluminum I-beam core construction to provide maximum durability and superior thermal management
  • Modern fixture design: Aluminum accessory mounting points and lens/filter rails
  • Modern fixture design: End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
  • Modern fixture design: Durable, industry standard 3-pin XLR locking power connector
  • Custom curved yoke design: Wide, unobstructed tilt range
  • Custom curved yoke design: Yoke mounted power supply and optional battery plates with dual integrated cable guides
  • Custom curved yoke design: Removable TVMP connector for flexible mounting options
  • Custom curved yoke design: Two alternate 1/4-20 mounting points

Litepanels Astra 1x1 Specifications

Color Temperature
Tungsten-Daylight
Power Requirements
13-24V DC / 100-240VAC
Maximum Power Draw
110W
Power Supply
24V DC via AC Adapter
Photometrics
Daylight:
825 fc / 8880 lux at 3.0' (0.9m)
206 fc / 2220 lux at 6.0' (1.8m)
92 fc / 987 lux at 9.0' (2.7 m)
Tungsten:
542 fc / 5823 lux at 3.0' (0.9m)
135 fc / 1456 lux at 6.0' (1.8m)
60 fc / 647 lux at 9.0' (2.7m)
Dimensions
17.7 x 16.3 x 5.3" / 44.95 x 41.40 x 13.46cm
Weight
7lbs / 3.17kg
Mfr #
935-1003
SKU
LPA1X1BCLED
