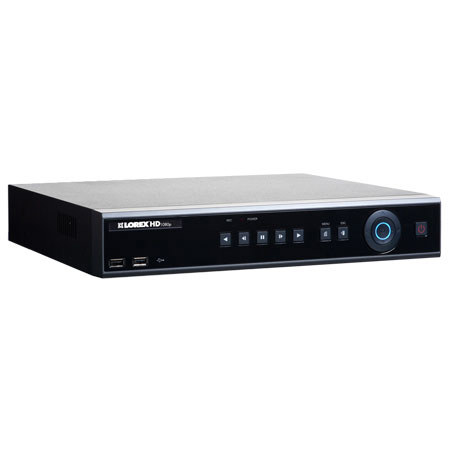

Lorex 8 Channel HD-SDI DVR Security System with 2TB Hard Drive and 4 1080p HD Cameras

SKU: LRD108201C4B MFR: LHD1082001C4B
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About this item

The Lorex 8 Channel HD-SDI DVR Security System is easy to install Do-It-Yourself security bundle boasts full 1080p HD viewing and recording capabilities, producing outstanding high definition images that can be digitally zoomed during live viewing and playback mode capturing every important detail. The dual streaming feature of the HD-SDI DVR allows for efficient bandwidth usage for remote viewing to your mobile device or computer while still recording HD video on to the 2TB surveillance grade hard drive. Optimize your playback with Smart search and the advanced Panorama & Multi-time search options, providing for fast review of motion events, sequenced clips before and after an incident and viewing the same camera channel at different times.

The High Definition Security Came a System features 4 1080p cameras that have dual outputs using high-grade RG59 coaxial cable so you can connect to a HD-SDI DVR and to a TV or monitor for simultaneous High Definition viewing. With an Infrared Cut Filter ensuring true and accurate color reproduction and Digital Noise Reduction providing clear night vision and improving recording efficiency, you can truly see the HD difference. Ideal for small businesses and home monitoring.

What's Included With This Item

  • Lorex 8 Channel HD-SDI DVR Security System
  • Remote Control
  • Power Adapter (for DVR)
  • Mouse
  • HDMI Cable
  • Ethernet Cable
  • Documentation CD
  • Quick Start Guide
  • Instruction Manual
  • 1080p HD-SDI Cameras
  • 100ft RG59 Siamese Extension Cable
  • 4-in-1 Power Adapter
  • Lorex 1 Year Limited Warranty

Summary of Customer Reviews

Customers most agreed on the following attributes:
Reviewer Profile:
Casual user (1) , Enthusiast (1)

Key Features

  • HD-SDI supporting 1080p & 720p recording
  • Digital Zoom in live view & playback
  • Advanced search & playback: Panorama and Multi-time
  • Smart Search for fast review of motion events in sequence
  • Pentaplex operation - View, Record, Playback, Backup & Remotely control the system simultaneously
  • 24x7 100% duty cycle HDD preinstalled. Supports 2 HDD (expandable up to 4TB)
  • Variable frame rate for higher recording speed during events
  • HDMI Outputs for convenient connection to HD TVs or monitors
  • eSATA output for faster large capacity backup
  • Remote Viewing on PC, Mac, smartphone & tablet
  • Exclusive LOREX Easy Connect Internet Set-up Wizard
  • Dual streaming to conserve bandwidth while streaming HD video locally
  • Free LOREX DDNS (Dynamic Domain Name Service) for reliable connectivity
  • Instant e-mail alerts with snap shot attachments and web link
  • 1080p (1920 x 1080) 2 Megapixel CMOS Image Sensor
  • Megapixel 4mm lens for superior detail and wide angle viewing (92deg. FOV)
  • Automatic Infrared Filter ensures true & accurate color in all lighting conditions
  • Smart IR technology with auto light compensation prevents washout effect
  • Lorex ClearNight imaging ensures clear night vision and improves recording efficiency using Digital Noise Reduction technology
  • Split glass design minimizes IR reflection
  • Anti-glare feature ensures clear images under strong lighting conditions
  • Night Vision up to 80ft away in total darkness and up to 140ft away in typical night time ambient lighting
  • Dual BNC (HD-SDI & Composite) video outputs for simultaneous HD and standard resolution video streaming
  • Vandal-resistant design: Cable pass-through wall-mount bracket protects connection cables
  • 100 FT RG59 high-grade Siamese (video & power) coaxial cable for flexible installation

Technical Specs

DVR: Operating System Linux (embedded)
DVR: Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
DVR: Number of Channels 4 or 8 Channels
DVR: Video IN 4 or 8 x 800m Vp-p, 75ohms, HD-SDI BNC
DVR: VGA Out Yes (not simultaneous with HDMI)
DVR: HDMI Out Video & Audio (not simultaneous with VGA)
DVR: Audio IN 4 Line in(RCA), CODEC:G.72b
DVR: Audio Out 1 line out(RCA), CODEC:G.72b
DVR: USB Port 2 (front)
DVR: eSATA Yes (high capacity backup)
DVR: Alarm IN 4 x TTL, programmable as NC/NO
DVR: Alarm Out 1 x Relay with NO/NC contact; 12VDC/1A, 110VAC/0.5A resistive
DVR: PTZ control RS485
DVR: Live Display 1 or 4 or 8
DVR: Live Display Speed 4 channel: 120/120 fps, 8 ch: 240/240 fps
DVR: Border Color Selectable
DVR: Digital Zoom Up to 10x
DVR: Motion Area Setting Adjustable grid (NTSC; 22 x15, PAL;22x18) (16x12-NTSC/PAL)
DVR: Sensitivity levels 5 levels
DVR: System Navigation USB Mouse, IR Remote Controller, Front Panel
DVR: Firmware Upgrade Via USB device
DVR: Software Upgrade Via USB device
DVR: User Authority 1 x Admin / 14 x Users
DVR: Time Synchronization Auto time sync by NTP server
DVR: Video Compression H.264
DVR: Audio Compression G.72b
DVR: Recording Resolution 1080p (1920 x 1080) /1920 x 1080 (NTSC/PAL)
720p (1280 x 720) / 1280 x 720 (NTSC/PAL)
DVR: Recording Speed 1080p: 4ch: 20/20 fps, 8 ch: 60/50 fps (NTSC/PAL)
720p: 4 ch: 45/45 fps, 8 ch: 120/100 fps (NTSC/PAL)
DVR: Recording Resolution Setting Per camera & resolution setting (1080p/720p)
DVR: Recording Quality Control 5 levels (Lowest/low/Medium/high/highest)
DVR: Recording Schedule By hour, by day, by recording mode, by alarm, by Ch
DVR: Pre Recording Max. 5 seconds
DVR: Post Recording Max. 300 seconds
DVR: Alarm Recording Programmable per camera
DVR: S.M.A.R.T Alarm HDD Health check
DVR: Reliability Watch-Dog, Auto-recovery after power failure
DVR: Covert Video Yes
DVR: Channel 4 ch: 1,4 / 8 ch: 1,4,8
DVR: Instant Playback Instant playback mode for quick review of log events
DVR: Playback Speed Variable playback (Max. 300x)
DVR: Calendar Search Search by time
DVR: Event Search Search by event
DVR: Panorama Search Frame by Frame
DVR: Multi time Search Multi Day / Hour
DVR: Log Search Up to Unlimited for user login/out, configuration changes, remote access, connects/disconnects
DVR: Audio Play Single camera in full screen mode
DVR: Storage Up to x 2 HDD's (SATA)
DVR: Maximum Capacity Up to 4TB (2 x 2TB)
DVR: Backup Media USB (flash drive & HDD) & eSATA
DVR: Backup File Format Manufacturer's format file (Codec included)
DVR: Watermark Watermarked video & audio for security
DVR: Easy Connect 1. Lorex Auto Port Forward Wizard
2. Built-in Auto Port Forwarding (UPnP router required)
DVR: Software Web browser/ Client Software
DVR: Supported Operating Systems Windows, Mac
DVR: Browsers Internet Explorer only
DVR: Email notification Text with shot attachment
DVR: iPhone /iPad Free App download from App store
DVR: Android 2.3 and above
DVR: System Configuration Full setup configuration over network
DVR: Ports Web:80, Client:3000
DVR: Network Protocol LAN, DHCP, Dynamic IP, DDNS
DVR: Network Interface 10/100/1000-Base-T, RJ-45
DVR: Network Speed Control 4 ch: 7 levels (56Kb - 4MB)/sec
8 ch: 7 levels (56Kb - 8MB)/sec
Camera: Image Sensor 1/3" 2.4 Megapixel CMOS Sensor (16:9)
Camera: Video Format NTSC
Camera: Effective Pixels H: 1920 V:1080
Camera: Resolution Up to 1920 x 1080p at 30fps
Camera: Scan System Progressive
Camera: Sync System Internal
Camera: S / N Ratio >50dB
Camera: Iris AES
Camera: AES Shutter Speed 1/1 - 1/100,000 sec.
Camera: Min. Illumination 0.5 Lux without IR LED, 0 Lux with IR LED
Camera: Video Output HD-SDI - 800mVpp at 75ohm, Composite - 1.0Vpp at 75ohm
Camera: Lens / Lens Type 3.6mm MP F1.8 / Fixed
Camera: FOV (Diagonal) 92deg.
Camera: Termination BNC Type (HD-SDI), 2nd BNC Type (Composite)
Camera: IR LED Qty. / Type 24 pieces / 850nm
Camera: Night Vision Range 155ft (48m) / 100ft (30m)
Camera: Power Requirement 12V DC ±10%
Camera: Power Consumption Max. 390mA (w / IR)
Camera: Operating Temp. Range 14deg. - 122deg.F / -10deg. - 50deg.C
Camera: Operating Humidity Range <90% RH
Camera: Environmental Rating Both (IP66)
DVR: Power Consumption Approx. 40 watts
DVR: Supply Voltage 100VAC-240VAC, 12VDC, 5A, 50/60Hz
DVR: Operating temperature -15deg.-104deg. F / 5deg. - 40deg. C
DVR: Humidity 10 - 80% NC
Dimensions (WxDxH) 13.38x11.81x2.32" / 33.98x29.99x5.89cm with stand
Weight DVR: 3.13 kg/6.9 lbs
Camera: 1.3lbs / 0.6kg (including stand)
