Lorex

Lorex 1080p High Definition 4-Channel Security Camera System with 4 Cameras, 16x Digital Zoom, 4TB Storage Capacity, USB, 20 fps Recording Speed

SKU: LRX044001C4 MFR: LHD1044001C4
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,399.99
Free Shipping
Qty:

Add to Wishlist

About the Lorex LHD1044001C4

The Lorex 1080p High Definition 4-Channel Security Camera System (4 Cameras) is a surveillance package that consists of a 16-channel DVR with 4 TB storage and 4 weatherproof cameras. The DVR features high-definition (1080p) viewing & recording, digital zoom in live view & playback with panorama and multi-time options. The cameras come with night vision and smart IR light filtering technology for clear imaging in both day and night applications.

Lorex LHD1044001C4 Includes

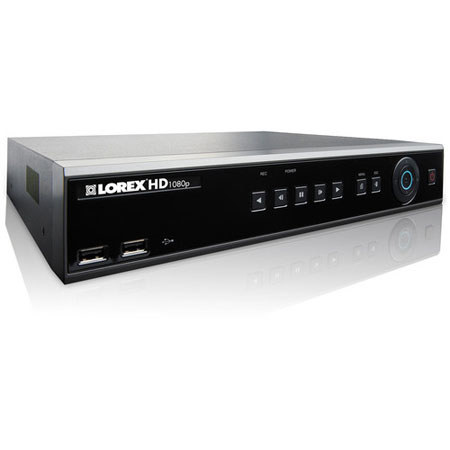

  • Lorex 4-Channel HD-SDI DVR with Pre-Installed HDD
  • 4 x 1080p HD-SDI Camera with Cable Pass-through Bracket
  • Remote Control
  • Power Adapter for DVR
  • Mouse
  • HDMI Cable
  • Ethernet Cable
  • Documentation CD
  • Quick Start Guide
  • Instruction Manual
  • 4 x 100' RG59 Siamese Video & Power Extension Cable
  • 4-in-1 Power Adapter for Cameras
  • Lorex 1 Year Limited Warranty

Lorex LHD1044001C4 Features

  • HD-SDI Digital Video Recorder: HD-SDI supported 1080p & 720p recording 1
  • HD-SDI Digital Video Recorder: Digital zoom in live view & playback
  • HD-SDI Digital Video Recorder: Advanced search & playback: panorama and multi-time
  • HD-SDI Digital Video Recorder: Smart Search for fast review of motion events in sequence
  • HD-SDI Digital Video Recorder: Pentaplex operation: View, record, playback, backup and remotely control the system simultaneously
  • HD-SDI Digital Video Recorder: 24 x 7 100% duty cycle preinstalled HDD (4 TB)
  • HD-SDI Digital Video Recorder: Variable frame rate for higher recording speed during events
  • HD-SDI Digital Video Recorder: HDMI outputs for convenient connection to HD TVs or monitors
  • HD-SDI Digital Video Recorder: eSATA Output for faster large capacity backup
  • HD-SDI Digital Video Recorder: Remote viewing on PC, Mac, smartphone & tablet
  • HD-SDI Digital Video Recorder: Exclusive LOREX Easy Connect internet set-up wizard
  • HD-SDI Digital Video Recorder: Dual streaming to conserve bandwidth while streaming HD video locally
  • HD-SDI Digital Video Recorder: Free LOREX DDNS (Dynamic Domain Name Service) for reliable connectivity
  • HD-SDI Digital Video Recorder: Instant e-mail alerts with snapshot attachments and web link
  • LBCHD2050PK4B 2MP HD Security Cameras: 1080p (1920 x 1080) 2 MP CMOS image sensor
  • LBCHD2050PK4B 2MP HD Security Cameras: 4mm megapixel lens for superior detail and wide-angle viewing (79deg. FOV)
  • LBCHD2050PK4B 2MP HD Security Cameras: Automatic Infrared Filter ensures true & accurate color in all lighting conditions
  • LBCHD2050PK4B 2MP HD Security Cameras: Accurate color reproduction with Lorex's automatic light filtering infrared technology, ensuring true color in HD
  • LBCHD2050PK4B 2MP HD Security Cameras: Smart IR technology with auto light compensation prevents washout effect
  • LBCHD2050PK4B 2MP HD Security Cameras: Lorex ClearNight imaging ensures clear night vision and improves recording efficiency using Digital Noise Reduction technology
  • LBCHD2050PK4B 2MP HD Security Cameras: Split glass design minimizes IR reflection
  • LBCHD2050PK4B 2MP HD Security Cameras: Anti-glare feature ensures clear images under strong lighting conditions
  • LBCHD2050PK4B 2MP HD Security Cameras: Night Vision up to 80' (24.38 m) away in total darkness and up to 140' (42.67 m) away in typical night time ambient lighting 5
  • LBCHD2050PK4B 2MP HD Security Cameras: Dual BNC (HD-SDI & Composite) video outputs for simultaneous HD and standard resolution video streaming
  • LBCHD2050PK4B 2MP HD Security Cameras: Vandal-resistant design: Cable pass-through, wall-mount bracket protects connection cables 6

Lorex LHD1044001C4 Specifications

Camera: Image Sensor 1/2.7" 2 MP CMOS sensor (16:9)
Camera: Video Format NTSC
Camera: Effective Pixels (H x V) 1920 x 1080
Camera: Resolution Up to 1920 x 1080p at 30 fps
Camera: Scan System Progressive
Camera: Sync System Internal
Camera: S / N Ratio 39 dB
Camera: Iris Control: AES
AES Shutter Speed: 1/30 to 1/100,000 second
Camera: Minimum Illumination Without IR LED: 0.5 lux
With IR LED: 0 lux
Camera: Video Output HD-SDI: 800 m Vpp at 75 Ohm
Composite: 1 Vpp at 75 Ohm
Camera: Lens 4 mm MP F2.0
Camera: Lens Type Fixed
Camera: FOV (Diagonal) 79deg.
Camera: Termination BNC type (HD-SDI, composite)
Camera: IR LED 24 x, 850 nm
Camera: Night Vision Range 80' (25 m) / 140' (42 m)
Camera: Environmental Rating IP66
Camera: Power Requirement 12 VDC ± 10%
Camera: Power Consumption Maximum 500 mA (with IR illumination)
Camera: Operating Temperature Range 14 to 122deg.F (-10 to 50deg.C)
Camera: Operating Humidity Range < 80% RH
DVR: Operating System Linux (embedded)
DVR: Pentaplex Operation Simultaneous view, record, playback, backup & remote monitoring
DVR: Number of Channels 4
Inputs/Outputs: Video In 4 x 800 m Vpp, 75 Ohm, HD-SDI BNC
Inputs/Outputs: VGA Output Yes (not simultaneous with HDMI)
Inputs/Outputs: HDMI Output Video & audio (not simultaneous with VGA)
Inputs/Outputs: Audio In/Out 4 x line in (RCA), CODEC: G.711U
1 x line out (RCA), CODEC: G.711U
Inputs/Outputs: USB Port 2 (front)
Inputs/Outputs: eSATA Yes (high-capacity backup)
Alarm Input / Output In: 4 x TTL, programmable as NC/NO Out: 1 x Relay with NO/NC contact
12 VDC/1 A, 110 VAC/0.5 A, resistive
Inputs/Outputs: PTZ Control RS485
Live Display 1 or 4
Live Display Speed 120 fps
Display: OSD On/off
Display: Border Color Selectable
Display: Digital Zoom Up to 16x
Display: Motion Area Setting Adjustable grid (22 x 15)
Display: Sensitivity 5 levels
Display: System Navigation USB mouse, IR remote controller, front panel
Display: Firmware Upgrade Via USB device
Display: Software Upgrade Via USB device
Display: User Authority 1 x admin / 14 x users
Display: Time Synchronization Auto time sync by NTP server
Video Compression H.264
Audio Compression G.711U
Recording Resolution 1080p (1920 x 1080) at 5 fps W per camera
720p (1280 x 720) at 10 fps/ 8 fps per camera
Recording Speed 1080p: 20 fps
720p: 45 fps
Recording Resolution Setting Per camera & resolution setting (1080p/720p)
Recording Quality Control 5 levels (lowest/low/medium/high/highest)
Recording Schedule By hour, by day, by recording mode, by alarm, by channel
Pre Recording Maximum 5 seconds
Post Recording Maximum 300 seconds
Alarm Recording Programmable per camera
Alarm HDD: S.M.A.R.T health check
Reliability Watchdog, auto-recovery after power failure
Covert Video Yes
Playback Channel 1, 4
Instant Playback Instant playback mode for quick review of log events
Playback Speed Variable playback (Maximum 300x)
Search Calendar: By time
Event: By event
Panorama: Frame by frame
Multi time: Multi day/hour
Log Search: Up to unlimited for user login/out, configuration changes, remote access, connects/disconnects
Audio Play Single camera in full screen mode
Storage Up to 2 HDD (SATA)
Maximum Capacity Up to 4 TB
Backup Media USB (flash drive & HDD) & eSATA
Backup File Format Manufacturer's format file (codec included) Watermark: Watermarked video & audio for security
Easy Connect Lorex Auto Port Forward Wizard
Built-in Auto Port Forwarding (UPnP router required)
Supported Operating Systems Windows, Mac
Supported Web Browsers Internet Explorer only
Email Notification Text with shot attachment
Connectivity Mobile
Compatibility iPhone/iPad: Free App download from App store
Android: 2.3 and above
iPhone/iPad: Free App download from App store
Android: 2.3 and above
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Web: 80
Client: 2000
Network Protocol LAN, DHCP, Dynamic IP and DDNS
Network Interface RJ-45: 10/100/1000-Base-T
Network Speed Control 7 levels (56 Kbps to 4 Mbps: 56 Kbps/128 Kbps/256 Kbps/512 Kbps/1 Mbps/2 Mbps/4 Mbps)
Power Consumption Approximately 40 W
Supply Voltage 100 to 240 VAC, 12 VDC, 5 A, 50/60 Hz
Operating Temperature -15 to 104deg.F (5 to 40deg.C)
Humidity 10 to 80% NC
Dimensions (WxDxH) With stand: 13.38x11.81x2.32" / 340x300x59mm
Weight 6.9lbs / 3.12kg
With stand: 0.8lbs / 0.36kg
