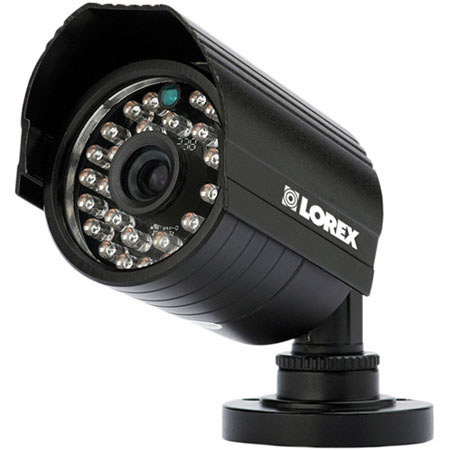

Lorex CVC6945 Night-Vision Outdoor Bullet Camera, 1/4" Color Image Sensor, 480 TVL Recording Resolution, NTSC

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock

About the Lorex CVC6945

The Lorex CVC6945 Weather-Resistant Night-Vision Outdoor Bullet Camera (NTSC) is designed for applications that require 24/7 surveillance in demanding and high-risk environments. It features a 1/4" color image sensor to capture clear and detailed images at a resolution 480 TVL.

The 4.6mm F2.0 fixed zoom lens of this outdoor bullet camera has a diagonal viewing angle of 57deg., enabling it to capture a wide surveillance area. At nightfall, the camera automatically switches to B&W recording mode. Its 30 covert IR LEDs illuminate the surveillance area up to a distance of 50' (15m) in total darkness. Unlike the IR LEDs on conventional security cameras, these LEDs don't glow when activated, enabling the camera to remain hidden from sight.

Featuring an IP66-rated housing, this night-vision bullet camera is suitable for installation in outdoor locations. Moreover, you can mount it on the ceiling as well as on a wall as per your requirements.

Lorex CVC6945 Includes

  • Lorex CVC6945 Night-Vision Outdoor Bullet Camera
  • Mounting Kit
  • Allen Key
  • 60' (18.2m) BNC/Power Extension Cable
  • BNC/RCA Adapter
  • Power Adapter
  • Lorex Limited 1 Year Warranty

Lorex CVC6945 Features

  • 1/4" color image sensor captures high-resolution video at 480 TVL
  • 4.6mm medium-angle lens with a 57deg. diagonal field of view for improved object recognition
  • Camera automatically switches to Black & White mode to deliver detailed images in low-light conditions
  • Clear and detailed images at night up to 75' (23m) in ambient lighting and up to 50' (15m) in total darkness
  • 30 covert IR LEDs don't glow red, making it difficult to detect the camera at night
  • Vandal-resistant design with cable pass-through bracket, so intruders can't disable the camera by cutting network/power cables
  • IP66-rated housing ensures protection from dust and moisture, allowing the camera to be used for outdoor and indoor applications
  • Flexible mount offers wall and ceiling installation options

Lorex CVC6945 Specifications

Image Sensor 1/4" color image sensor
Video Format NTSC
Effective Pixels (HxV) 668x512
Resolution 480 TVL
Scan System 2:1 interlace
Sync System Internal
S/N Ratio 46.8 dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 to 1/100,000 second
Minimum Illumination 0.1 lux without IR LED
IR LED Quantity: 30
Type: 940nm
Video Output Composite 1 Vpp at 75 Ohm
Lens 4.6 mm, F2.0
Lens Type Fixed
FOV (Diagonal) 57deg.
Termination BNC type
Night Vision Range Ambient Lighting: 75' (22.86m)
Total Darkness: 50' (15.24m)
Power Requirement 12 VDC ± 10%
Power Consumption Maximum 230 mA (with IR)
Operating Temperature Range 14 to 122deg.F (-10 to 50deg.C)
Operating Humidity Range <95% RH
Environmental Rating IP66
Dimensions (HxWxL) 2.60x3.10x5.90" (0.66x0.78x1.49cm)
Weight Including Stand: 0.70lbs (0.31kg)
