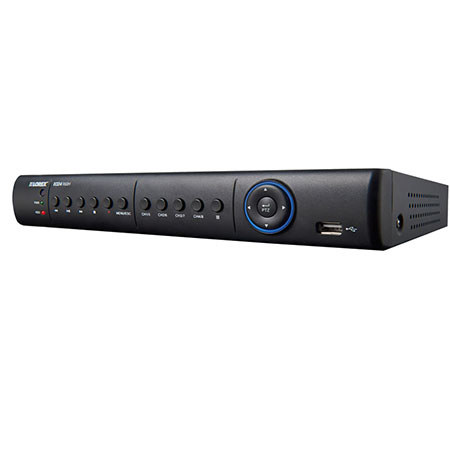

Lorex ECO4 Series LH1581001 1TB 8-Channel Security DVR, 960H Recording Resolution, H.264 Video Compression, 10/100-Base-TX & RJ-45 Network Interface

SKU: LRXLH1581001 MFR: LH1581001

This item is no longer available.

Ways To Save

Product Highlights

  • 8 Channels
  • Holds 1TB
Lorex ECO4: Picture 1 regular

About Lorex ECO4

The Lorex ECO4 Series LH1581001 1TB 8-Channel Security DVR is an enhanced surveillance solution designed to maintain vigilance and provide true peace of mind. Its 960H The Lorex ECO4 Series LH1581001 1TB 8-Channel Security DVR (960 x 480) recording resolution not only ensures high-quality live-viewing and recording but also offers a sharp, non-stretched, undistorted image with a true-to-life aspect ratio that enhances your ability to view your world.

Featuring the innovative hassle-free Stratus cloud connectivity, the DVR allows you to quickly and easily connect to your smartphone or tablet, without the need for a PC: just download free App, scan QR code and start viewing your world securely online! The ECO 4 DVR allows you to connect & view your system on any device no matter where you are. The DVR is optimized for use with 960H compatible cameras. In addition, this 8-channel DVR is backwards compatible and supports different camera inputs: standard resolution and 960H.

It can record all channels in real-time to the specialty hard drive designed for surveillance, providing weeks or even months of reliable video. You can customize the recording settings to fit your needs: record at 960H (960 x 480) for highest resolution or set to a lower resolution for extended recording time.

HDTV Ready
High definition interface with HDMI output for easy connection to a TV.

24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.

Stratus Solution
Innovative hassle-free cloud connection.

Superior 960H Resolution
Records at 34% higher resolution than DVD quality (D1), offering true to life aspect ratio that provides sharper, more detailed and non-stretched images.

Versatile Connectivity
Connect & view your system on any device no matter where you are. Complete setup with your smartphone or tablet, no PC required.

Professional-Grade Performance
Record all channel in real-time to specialty hard drive designed for surveillance, providing weeks or even months of reliable video.

Lorex ECO4 Specifications

Operating System
Linux (embedded)
Pentaplex Operation
Simultaneous view, record, playback, backup & remote monitoring
Number of Channels
Video In
8 x 1 Vpp, CVBS, 75 ohms, BNC
Video Out
8 x BNC
VGA Output
Video and audio
Audio In
8 line in (RCA), G.711
Audio Out
1 line out (RCA), G.711
USB Ports
1 at the back, 1 at the front
Alarm Input
8-channel in
Alarm Out
1-channel out
Video Resolution
800 x 600, 1024 x 768, 1280 x 1024, 1440 x 900, HDMI (1920 x 1080)
PTZ Control
RS-485 Pelco D & P Protocol
Live Display
1, 4, 8
Live Display Speed
NTSC: 480 fps
PAL: 400 fps
On Screen Display
On / off
System Navigation
USB mouse, IR remote controller, front panel
Motion Area Setting
NTSC: Adjustable grid (30 x 44)
PAL: Adjustable grid (36 x 44)
Sensitivity Levels
Firmware Upgrade
Automatic over the Internet & via USB device and network
User Authority
By user group
Time Synchronization
Auto time sync by NTP server
Video Compression
Audio Compression Format
Recording Resolution
960H Mode: 960 x 480, 960 x 240, 480 x 240
D1 Mode: 720 x 480 (D1), 720 x 240 (2CIF), 360 x 240 (CIF)
960H Mode: 960 x 576, 960 x 288, 480 x 288
D1 Mode: 720 x 576 (D1), 720 x 288 (2CIF), 360 x 288 (CIF)
Recording Speed
960H Mode: 480 fps at 480 x 240, 160 fps at 960 x 480 & 960 x 240
D1 Mode: 480 fps at CIF, 224 fps at D1 & 2CIF
960H Mode: 400 fps at 480 x 288, 144 fps at 960 x 576 & 960 x 288
D1 Mode: 400 fps at CIF, 192 fps at D1 & 2CIF
Recording Resolution Setting
Per camera for different resolutions
Recording Quality
3 levels
Recording Schedule
By hour, by day, by recording mode, by motion, by alarm, by channel
Pre Recording
Maximum 10 sec
Post Recording
Maximum 5 minutes
Watchdog, auto-recovery after power failure
Covert Video
Playback Channel
1 to 8 Adjustable
Playback Speed
Variable maximum 16x
Playback Players
Backup player
By time & event
Log Search
Up to 10,000 lines for alarm activated, motion detected, configuration changes, connects/disconnects and video loss
Audio Play
Up to 1 HDD's (SATA)
Maximum Capacity
Up to 1 x 2 TB
Backup Media
USB flash drive & HDD
Backup File Format
H.264 file (AVI generator included)
Cloud Connectivity
Lorex Stratus Connectivity
Operating Systems Supported
Windows 7, 8
Mac OSX Snow Leopard 10.6 or above
Remote Software Configuration
Client software (PC) & Safari 6.0 (Mac)
Email Notification
Text with snapshot
Smartphone Compatibility
Smartphone & Tablet Compatibility: iPad, iPhone (iOS v.5.0 or higher), Android (version 2.2 & above)
Free Lorex DDNS
System Configuration
Full setup configuration over network
Programmable by user
Network Protocol
Network Interface
10/100-Base-TX, RJ-45
Network Speed Control
48 kb/s to 8 Mb/s
Power Consumption
Approximately 10 W (no HDD included)
Supply Voltage
100 to 240 VAC, 12 VDC, 5 A, 50/60 Hz
Operating Temperature
32 to 104deg.F (0 to 40deg.C)
10 to 90% (non-condensing)
Dimensions (W x D x H)
11.80 x 9.90 x 2.40" (299.72 x 251.46 x 60.96cm)
3.75lbs (1.70kg)
