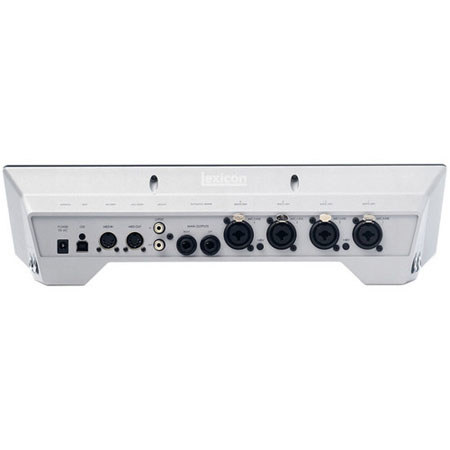

Lexicon IO42 4x2 USB 2.0 Desktop Recording Studio, MIDI & S/PDIF Input/Output, 24-bit Converters

SKU: LXCIO42 MFR: IO42

Our Price

$329.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $412.44

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Ways To Save

Product Highlights

  • USB 2.0 Desktop Recording Studio
  • 44.1kHz to 96kHz sample rates, 24-bit resolution
  • Superior sonic performance
  • 4 analog combi-jacks for mic/line inputs
  • 2 analog 1/4" TRS balanced outputs
  • Zero latency monitoring
  • Low latency ASIO drivers
  • Separate level meters and gain control per channel
Lexicon IO42: Picture 1 regular $329.95

About Lexicon IO42

Brilliantly designed, the Lexicon IO42 4x2 USB 2.0 Desktop Recording Studio is compatible with any DAW, including Pro Tools 9 and 10. Now, this innovative hardware design meets the software capability of any creative passion. Featuring newly designed dbx 60V high-voltage, ultra-low noise mic preamps on all 4 channels, the IO42 is more than equipped to provide professional recordings that keep your music sounding at its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D - D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

The IO42 can record four tracks at once and includes 4 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, 2 hi-Z instrument inputs, 2 high power 1/4" headphone outputs, S/PDIF and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.

Lexicon IO42 Features

  • USB 2.0 Desktop Recording Studio
  • 44.1kHz to 96kHz sample rates, 24-bit resolution
  • Pantheon II VST/AU reverb plug-in with 6 legendary Lexicon reverbs
  • dbx 60V high-voltage, ultra-low noise microphone preamps on all 4 channels
  • Superior sonic performance
  • 4 analog combi-jacks for mic/line inputs
  • 2 analog 1/4" TRS balanced outputs
  • Zero latency monitoring
  • Low latency ASIO drivers
  • Streamlined monitor form factor puts all recording controls at your fingertips
  • Separate level meters and gain control per channel
  • 2 side panel 1/4" instrument inputs
  • 2 side panel headphone outputs with dedicated volume adjustment
  • Stereo S/PDIF digital I/O
  • MIDI in and out

Lexicon IO42 Specifications

Mic Preamps
4
Converters
24-bit
Sample Rates
44.1, 48, 88.4 and 96kHz
Inputs
4 x Combo XLR female
2 x 1/4" TS phone Instrument
1 x RCA coaxial S/PDIF
Input Impedance
Microphone: 3kOhms balanced
Line: 20kOhms balanced, 13kOhms unbalanced
Instrument: 1MOhms
Maximum Input Level
Microphone: +8dBu
Line: +18dBu
Instrument: +10dBu
Gain
Microphone: +55dB
Outputs
2 x 1/4" TRS phone
2 x 1/4" TRS phone Headphone
1 x RCA coaxial S/PDIF
Output Impedance
32Ohms balanced, 16Ohms unbalanced
Maximum Output Level
Line: +18dBu
Headphone: 350mW/channel @ 50Ohms
MIDI
2 x 5-pin DIN I/O
Dynamic Range
A/D (24-bit): 108dB typical, A-weighted, 20Hz to 20kHz (44.1kHz sample rate)
D/A (24-bit): 110dB typical, A-weighted, 20Hz to 20kHz A/D/A (24-bit): 106dB typical, A-weighted, 20Hz to 20kHz
THD + N
Microphone: <0.02%, 20Hz to 20kHz, <0.002%, 1kHz, -6dBu
Line Input: <0.02%, 20Hz to 20kHz, <0.002%, 1kHz, +18 dBu
Instrument Input: <0.08%, 1kHz, +4dBu
Noise
Microphone EIN: -127dBu @ 55dB gain typical (150Ohms source) -130dBu @ 55dB gain typical A-weighted (150Ohms)
Frequency Response
Microphone: 20Hz to 20kHz, +/-1.5dB
Line Input: 20Hz to 20kHz, +/-1.5dB
Instrument Input: 20Hz to 20kHz, +/-2.5dB
Phantom Power
48V
Controls
Phones Level
Trim
48V
Stereo
Output Level
Monitor Mix
Power
9 VDC, 1.3A external power supply (included)
Compatibility
ASIO, Core Audio, WDM, MME and multi-client drivers
System Requirements
Mac
Intel multi-core system (required)
OS X 10.4.9 or later
1GB RAM
USB 2.0 Port
1024 x 768 pixels display resolution
DVD-ROM drive
Internet connection
PC
1.8GHz CPU or faster
Windows XP SP2, Vista 32, Windows 7
1GB RAM
USB 2.0 Port
DVD-ROM drive
Internet connection
Dimensions (W x D x H)
15 x 3.75 x 4" (381 x 95 x 102mm)
Weight
3.1 lb (1.4kg)
Mfr #
IO42
SKU
LXCIO42
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Hello, 4.3.12 Is this the updated lexicon I-O 42 ( as the Ionix I-O42 by Lexicon is considered a legacy product) and 4 software apps/plug ins are included now Cubase LE, Pantheon II Reverb, Toontracks EZ Drummer Lite and a Synth app XILX3 SE (or SC) Its listed on lexicon's website , and also ? drivers are they on a disk or d-loaded from Lexicon? Final ? if software opened is it considered unreturnable (the Lexicon I-O 42 entirely?) or ? Thanks
Andrew R  I'm afraid I'm not sure I understand your question. The manufacturer's website still shows this unit as available, no indication that it has become a "legacy product" on the the product page. It's possible that they have discontinued production, but no notice is provided on the product page. Software appears to be provided on disc, though the manufacturer appears to offer updated drivers if required. Once opened, I do not believe that this unit would be returnable.
