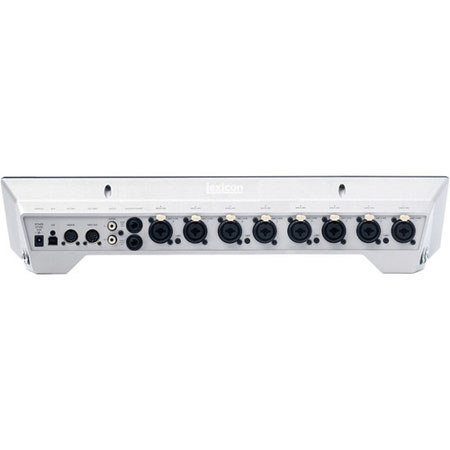

Lexicon IO82 8x2 USB 2.0 Desktop Recording Studio, MIDI & S/PDIF Input/Output, 24-bit Converters

See all Lexicon items
Lexicon IO82: Picture 1 thumbnail Lexicon IO82: Picture 2 thumbnail Lexicon IO82: Picture 3 thumbnail

List Price: $624.94

20% Off

Our Price

$499.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Lexicon IO82

Brilliantly designed, the Lexicon IO82 8x2 USB 2.0 Desktop Recording Studio is compatible with any DAW, including Pro Tools 9. Now, this innovative hardware design meets the software capability of any creative passion. Featuring newly designed dbx 60V high-voltage, ultra-low noise mic preamps on all 8 channels, the IO82 is more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D - D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

The IO82 can record eight tracks at once and includes 8 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, 2 hi-Z instrument inputs, 2 high power 1/4" headphone outputs, S/PDIF and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.

Lexicon IO82 Features

  • USB 2.0 Desktop Recording Studio
  • 44.1kHz to 96kHz sample rates, 24-bit resolution
  • Pantheon II VST/AU reverb plug-in with 6 legendary Lexicon reverbs
  • dbx high-voltage, ultra-low noise microphone preamps
  • 2 analog combi-jacks for mic/line inputs
  • Zero-latency monitoring
  • Streamlined monitor form factor
  • 1 side panel 1/4" instrument input
  • 2 analog 1/4" TRS outputs
  • Separate source gain control per channel
  • 1 headphone output with dedicated volume adjustment
  • MIDI in and out

Lexicon IO82 Specifications

Mic Preamps
8
Converters
24-bit
Sample Rates
44.1, 48, 88.4 and 96kHz
Inputs
8 x Combo XLR female
2 x 1/4" TS phone Instrument
1 x RCA coaxial S/PDIF
Input Impedance
Microphone: 3kOhms balanced
Line: 20kOhms balanced, 13kOhms unbalanced
Instrument: 1MOhms
Maximum Input Level
Microphone: +20dBu @ minimum input gain
Line: +32dBu
Instrument: +13dBu
Gain
Microphone: +58dB
Outputs
2 x 1/4" TRS phone
2 x 1/4" TRS phone Headphone
1 x RCA coaxial S/PDIF
Output Impedance
32Ohms balanced, 16Ohms unbalanced
Maximum Output Level
Line: +18dBu
Headphone: 350mW/channel @ 50Ohms
MIDI
2 x 5-pin DIN I/O
Dynamic Range
A/D (24-bit): 102dB typical, A-weighted, 20Hz to 20kHz (44.1kHz sample rate)
D/A (24-bit): 106dB typical, A-weighted, 20Hz to 20kHz
A/D/A (24-bit): 101dB typical, A-weighted, 20Hz to 20kHz
THD + N
Microphone: <0.01% 20Hz to 20kHz, +4dBu input level, +4dBu output (mic input to main output), <0.008% 1kHz, +4 Bu input level, +4dBu output, (mic input to main output)
Line Input: <0.015%, 20Hz to 20kHz, +4dBu (line input to main output)
Instrument Input: <0.05%, 20Hz to 20kHz, +4dBu input level, +4dBu output, (instrument input to main output
Noise
Microphone EIN: -125dBu @ 58dB gain typical (150Ohms source) -128dBu @ 58dB gain typical A-weighted (150Ohms)
Frequency Response
Microphone: 20Hz to 20kHz, +/-1.0dB
Line Input: 20Hz to 20kHz, +/-1.0dB
Instrument Input: 20Hz to 20kHz, +/-1.0dB
Phantom Power
48V
Controls
Phones Level
Trim
48V
Stereo
Output Level
Monitor Mix
Power
12 VDC external power supply (included)
Compatibility
ASIO, Core Audio, WDM, MME and multi-client drivers
System Requirements
Mac
Intel multi-core system (required)
OS X 10.4.9 or later
1GB RAM
USB 2.0 Port
1024 x 768 pixels display resolution
DVD-ROM drive
Internet connection
PC
1.8GHz CPU or faster
Windows XP SP2, Vista 32, Windows 7
1GB RAM
USB 2.0 Port
DVD-ROM drive
Internet connection
Dimensions (W x D x H)
18 x 3.75 x 4" (457 x 95 x 102mm)
Weight
3.7 lb (1.7kg)
