Lexicon IOFW810S 10 Input/12 Output FireWire Audio Interface with Integrated Channel Strip Processing

See all Lexicon items
Lexicon IOFW810S: Picture 1 thumbnail Lexicon IOFW810S: Picture 2 thumbnail Lexicon IOFW810S: Picture 3 thumbnail

List Price: $999.95

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

30% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • Zero latency Lexicon monitor reverb
  • 44.1 to 96KHz sample rates, 24 bit processing
  • Stereo S/PDIF digital I/O
  • MIDI In and Out
  • FireWire 400 connection to DAW
  • FireWire
Lexicon IOFW810S: Picture 1 regular $699.95

About Lexicon IOFW810S

The Lexicon IOFW810S is a 10 input/12 output FireWire interface that along with the included software, functions as professional recording studio contained in a single rack unit. Features include eight dbx high-voltage, ultra-low noise microphone preamps, Pantheon II reverbs and a powerful software mixing board with dbx dynamics and hardware monitor reverb.

Built-in dbx Type IV conversion preserves the dynamic range of digital audio even when levels get too high. Recordings can acquire an oversaturated quality once only found on big analog recorders. The conversion delivers more headroom, capturing subtle details in higher level signals instead of hard clipping them.

The included software mixer adds integrated dbx dynamics (compressor, gate, limiter, EQ) to any digital audio workstation. It allows for easily adjusting levels, routing signals through the analog inputs and outputs and previewing reverbs and dynamics.

The hardware does the processing, so mixing and fine tuning recordings can be done in real-time with zero latency. Save and load snapshots of mixer settings and up to five monitor mixes, one for the main control mix and up to four for individual band members.

The unit is compatible with any DAW, including Pro Tools 9. The IO software suite also includes the Pantheon II reverb plug-in from Lexicon, XLIS 3 SE Synth Virtual Instrument and Toontrack's EZ Drummer Lite and it all works seamlessly in the included Cubase LE 4 software.

Lexicon IOFW810S Features

  • Zero latency Lexicon monitor reverb
  • dbx high-voltage, ultra low noise mic pre's on all 8 channels
  • dbx dynamics (compressor, limiter, gate, EQ) on all 8 channels

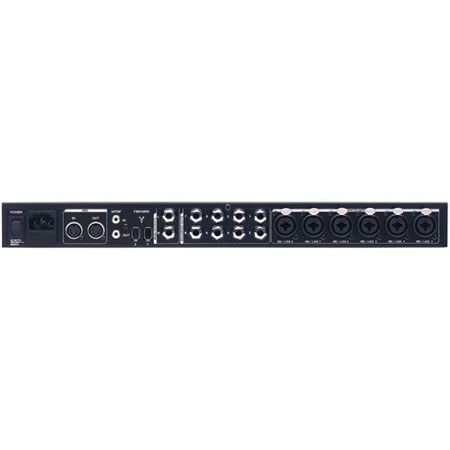

  • 6 analog combi-jack inputs on the rear panel for mic/line inputs
  • 2 front panel combi-jacks accept mic, line, or instrument signals
  • Type IV conversion feature emulates tape saturation at high levels
  • Zero latency mixer hardware UI with dbx dynamics and a hardware monitor reverb
  • 44.1 to 96KHz sample rates, 24 bit processing
  • 8 analog TRS outputs (7.1 surround capable) and stereo main (control room) outs
  • Stereo S/PDIF digital I/O
  • MIDI In and Out
  • FireWire 400 connection to DAW
  • Software suite includes Steinberg's Cubase LE 4, Toontrack EZ Drummer lite and Lexicon Pantheon II Reverb Plug-in
  • Low Latency drivers include Windows WDM with ASIO support along with and Macintosh CoreAudio with ASIO support

Lexicon IOFW810S Specifications

Mic Preamps
Sample Rates
44.1, 48, 88.4 and 96kHz
8 x Combo XLR female
1 x RCA coaxial S/PDIF
Input Impedance
Microphone: 3kOhms balanced
Line: 20kOhms balanced, 13kOhms unbalanced
Instrument: 500kOhms
Maximum Input Level
Microphone: +8dBu @ minimum input gain
Line: +22dBu
Instrument: +10dBu
Microphone: +55dB
8 x 1/4" TRS phone
1 x 1/4" TRS phone Headphone
1 x RCA coaxial S/PDIF
Output Impedance
32Ohms balanced, 16Ohms unbalanced
Maximum Output Level
Line: +20dBu
Headphone: 250mW/channel @ 50Ohms
2 x 5-pin DIN I/O
Dynamic Range
A/D (24-bit): 110dB typical, A-weighted, 20Hz to 20kHz
D/A (24-bit): 110dB typical, A-weighted, 20Hz to 20kHz
A/D/A (24-bit): 108dB typical, A-weighted, 20Hz to 20kHz
Microphone: <0.02%, 20Hz to 20kHz, <0.002%, 1kHz, -6dBu
Line Input: <0.02%, 20Hz to 20kHz, <0.002%, 1kHz, -6dBu
Instrument Input: <0.08%, 1kHz, +4dBu
Microphone EIN: -127dBu @ 55dB gain typical (150Ohms source), -130dBu @ 55dB gain typical A-weighted (150Ohms)
Frequency Response
Microphone: 20Hz to 20kHz, +/-1.5dB
Line Input: 20Hz to 20kHz, +/-1.5dB
Instrument Input: 20Hz to 20kHz, +/-2.5dB
Phantom Power
Phones Level
Output Level
100 to 240 VAC, 50/60Hz, 30W
ASIO, Core Audio, WDM drivers
System Requirements
Intel multi-core system (required)
OS X 10.4.9 or later
FireWire 400 port
1024 x 768 pixels display resolution
DVD-ROM drive
Internet connection
1.8GHz CPU or faster
Windows XP SP2, Vista 32, Windows 7
FireWire 400 port
DVD-ROM drive
Internet connection
Dimensions (W x D x H)
19 x 10.5 x 1.7" (483 x 267 x 43mm)
7.7 lb (3.5kg)
Mfr #
