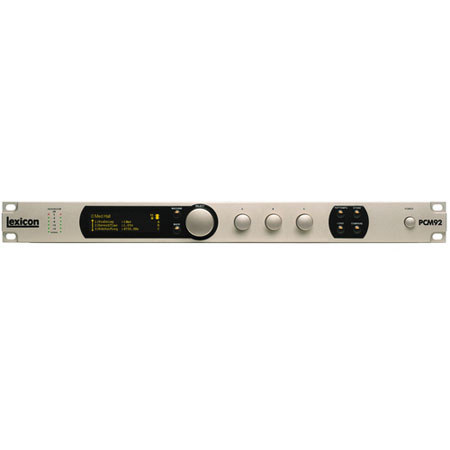

Lexicon PCM92 Studio Standard/Live Sound Reverb and Effects Processor, 7 Routing Configurations

See all Lexicon items
Lexicon PCM92: Picture 1 thumbnail Lexicon PCM92: Picture 2 thumbnail Lexicon PCM92: Picture 3 thumbnail
20% Off

Our Price

$1,799.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Lexicon PCM92

The Lexicon PCM92 Studio Standard/Live Sound Reverb and Effects Processor utilizes the latest DSP technology and the finest collection of classic Lexicon algorithms to offer the ultimate audio processor for live sound and studio applications. The PCM92 delivers 28 mono and stereo reverbs, delays and modulation effects, flexible routing configurations and a comprehensive collection of over 1200 finely-crafted presets, including recognizable classics from Lexicon's immense library of sounds.

Lexicon PCM92 Features

  • 28 Lexicon studio-standard reverbs, delays and modulation effects
  • Comprehensive collection of over 1200 finely crafted factory presets, including recognizable classics from Lexicon's immense library of sounds
  • Lexicon's flexible Room algorithm used to generate a vast array of room-related effects for music and film production
  • Multi-voice pitch shift to enhance vocals
  • Full system configuration and control with HiQnet System Architect
  • 44.1 to 96 kHz sample rate, 32-bit floating point processing
  • Two channels balanced analog I/O (XLR and 1/4")
  • Two channels XLR digital AES/EBU I/O
  • Ethernet connectivity and full MIDI control
  • External BNC Word Clock
  • Foot controller inputs make it easy to change presets and adjust parameters during live performances
  • High-resolution OLED display is easy to read in all light conditions

Lexicon PCM92 Specifications

Analog Audio Inputs: Connectors
Two XLR-1/4" TRS (combi-jack) analog balanced inputs
Analog Audio Inputs: Impedance
20k Ohm, balanced
Analog Audio Inputs: Input Level
+4dBu mode: +20dBu max
-10dBV mode: +8.2dBu max
Type IV mode: +26dBu max
Analog Audio Outputs: Connectors
Two Male XLR and Two Female 1/4" TRS
Analog Audio Outputs: Impedance
30 Ohm, electronically balanced
Analog Audio Outputs: Output Level
+20dBu
Digital Audio I/O: Connectors
One Female XLR Input / One Male XLR Output
Digital Audio I/O: Format
AES/EBU balanced
Digital Audio I/O: Conversion
24-bit A/D; 24-bit D/A
Digital Audio I/O: Sample Rates
44.1kHz, 48kHz, 88.2kHz, 96kHz
Digital Audio I/O: Accuracy
within +/-50ppm
Digital Audio I/O: Lock Range
+/-2% of nominal
Audio Performance: Freq Response @96KHz
20Hz to 20kHz, +/-0.25dB
20kHz to 40kHz, +0/-3dB
Audio Performance: THD
<.003%, 20Hz to 20kHz @ +4dBu
Audio Performance: Dynamic Range
>112dB unweighted, 115dB A-weighted
Audio Performance: Crosstalk @ 1kHz
<-90dB, 20Hz to 20kHz @ +20dBu input
Audio Performance: Internal Audio DSP
32/64-bit floating point
Synchronization: TTL Word Clock Input
75 Ohm, BNC
Control Interface: MIDI
In/Out/Thru
Control Interface: Footswitch
One 1/4" TRS connector for independent momentary footswitches
Control Interface: Foot Controller
One 1/4" TRS connector for foot pedal (100 Ohm - 10kOhm impedance)
Operating Temperature
15Deg. to 35Deg. C
Storage Temperature
-30Deg. to 70Deg. C
Humidity Temperature
75% relative humidity max
Rack Units
1U
Power Consumption
<14W
Software Compatibility
Mac OS X 10.4.x, 10.5.x, 10.6.x
Dimensions (W x H x D)
19.0" x 1.75" x 9.5" / 483mm x 44.5mm x 241.3mm
Weight
8 lbs / 3.63 kg
