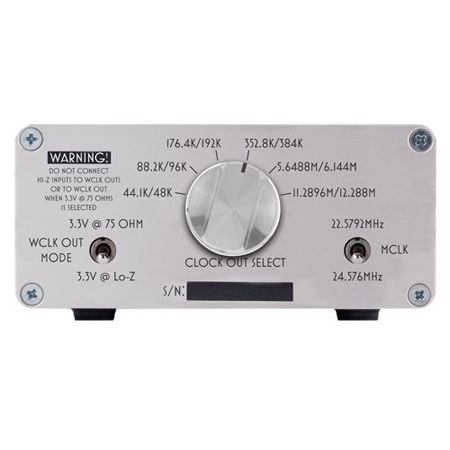

The M2Tech Evo Clock is a high-performance clock generator based on extremely low phase noise, high precision TCXO's, custom made for M2Tech. Two outputs are available: one master clock dedicated to hiFace Evo, capable of 22.5792MHz or 24.576MHz (depending on settings) and delivering 3.3Vpp on 75 Ohms matched line and a general purpose word clock output with selectable output frequency up to 384 kHz, with the option for "super clocks" 128x and 256x.
The latter has a line matching option and can deliver 3.3 Vpp on both high impedance and 75 Ohms loads. Ultra-low noise regulators allow for a very clean supply for both oscillators and the conditioning logic, leading to fully exploiting the oscillators' performance.
|Word Clock Frequencies||44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz|
|Super Clock Frequencies||5.6448, 6.144, 11.2896, 12.288 MHz|
|Master Clock Frequencies||22.5792, 24.576 MHz|
|Outputs||3.3Vpp on 75 Ohms BNC matched line (master clock), 3.3Vpp on 75 Ohms BNC matched line or hi-Z line (word clock)|
|Phase noise (@10Hz)||-100dBC/Hz min|
|Phase noise (@100Hz)||-130dBC/Hz min|
|Phase noise (@1kHz)||-145dBC/Hz min|
|Precision||+/- 1.5ppm 0deg.C to 50deg.C|
|Temperature stability||+/- 1ppm|
|Dimensions (W x H x D)||105 x 46 x 104mm / 4.13 x 1.81 x 4.09"|
|Weight||350g / 12.34 oz|
