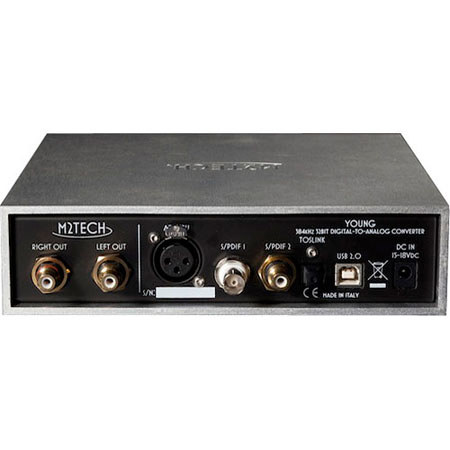

M2Tech Young High Performance Digital to Analog Converter (Blue LEDs), 16 up to 24 bit Resolution

SKU: M2EYOUNGB MFR: E-YOUNG-B
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,399.00 $56 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the M2Tech E-YOUNG-B

The M2Tech Young is a high performance, very high value-for-money D/A converter capable of handling up to 384 kHz sampling rate and 32 bits resolution (USB input). It features a high speed asynchronous USB input based on the hiFace technology, further developed to allow for higher sampling rates. A comprehensive input set (S/PDIF on RCA and BNC, AES/EBU on XLR and optical on Toslink) provide great connection versatility. A high performance oversampling filter, custom-made on a programmable logic device (FPGA) implements minimum-phase filters optimized for sound quality which allow for a very low noise floor.

A 32-bit D/A integrated circuit is used in a non-conventional mode to allow for 768kHz internal operation. The synergy between the DAC IC and the custom oversampler allows for exceptionally low noise floor and THD. The output buffer uses a special operational amplifier with very low noise and THD thanks to its class-A biased output stage. The small size and stylish look of the Young allow for an uninvasive placement in every living space.

M2Tech E-YOUNG-B Includes

  • M2Tech Young High Performance Digital to Analog Converter
  • External Power Supply
  • USB Cable
  • M2Tech Warranty

M2Tech E-YOUNG-B Specifications

Sampling Frequencies 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 KHz
Resolution 16 up to 24 bit (S/PDIF, AES/EBU, optical), 16 to 32 bit (USB)
Frequency response 10-20kHz +0.1/-0.5dB (fs = 44.1kHz)
10-90kHz +0.1/-0.1dB (fs=384kHz)
SNR 121dB (A weighted, 192kHz, 24 bits, 20kHz bandwidth)
THD+N 0.0003% (192kHz, 24 bits)
Inputs 2 x S/PDIF (RCA and 75 Ohms BNC)
1x AES/EBU (XLR)
1x optical (Toslink)
1x USB (USB female Type B)
Output single ended on RCA female
Output voltage 2.65Vrms (7.5Vpp @ 0dBFS)
Supply voltage 15V-18VDC
Supply current 240mA@15V
Dimensions (W x H x D) 200 x 2000 x 50mm / 7.87 x 7.87 x 1.96"
Weight 1 kg / 2.20 lbs
