Mackie

Mackie DLM12S Powered 12" Subwoofer, 2,000W Peak Power, DLP Digital Processor

SKU: MADLM12S MFR: DLM12S
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,249.99 List Price

Our Price

$999.99
Free Shipping
Qty:

Add to Wishlist In Stock

Protect your investment

About the Mackie DLM12S

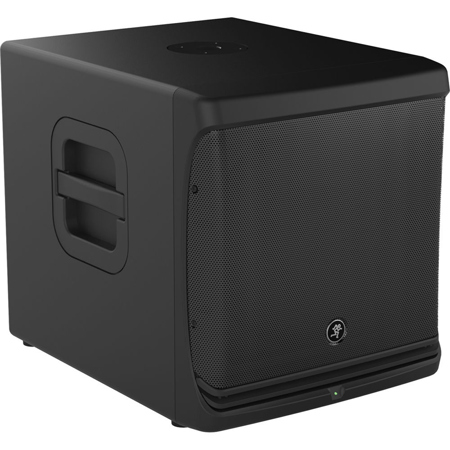

The Mackie DLM12S Powered 12" Subwoofer packs a great deal of power for a compact subwoofer. It delivers up to 1,000W program and 2,000W peak power into a heat-treated 12" woofer with a 3" voice coil. Its frequency response extends down to 35Hz, with a variable low-pass crossover from 90 to 135Hz. The connection panel of the DLM12S features left and right XLR balanced inputs as well as a set of full-range outputs and a set of high-pass outputs. The construction of the DLM12S includes a pole-mount cup for a Mackie DLM8 or DLM12 full-range speaker.

Mackie DLM12S Features

  • Powerful, one-touch digital processor with bright OLED screen
  • Alignment delay up to 300mS for delay stack, balcony, etc
  • Three memory locations for instant venue setting recall
  • Smart Protect DSP protects the amplifier and driver

Mackie DLM12S Specifications

Active or Passive Active, Class-D amplification
Audio Inputs 2 x XLR balanced (1 x L/R)
Input Impedances 20k Ohms balanced, 10k Ohms unbalanced
Audio Outputs 2 x XLR balanced - Full Range Outputs (1 x L/R) parallel with input
2 x XLR balanced - High Pass Outputs (1 x L/R)
Transducer 12" (305 mm) woofer diameter
3" (76 mm) voice coil diameter
Paper diaphragm material
Ferrite magnet material
Rated Power 1,000W RMS
2,000W peak
THD < 1%
Cooling Multi-speed fan
Frequency Response 35 Hz to 90 Hz or 35 Hz to 135 Hz, (-10 dB) user-selectable
Maximum Sound Pressure Level (SPL) 128 dB at 1 m, calculated
Crossover Point 60 to 120 Hz, user-selectable
System Processor DLP Digital System Processing:
Volume [VOL]: Off (-infinity dB) to +10 dB
Crossover [XVR]: Four preset modes, one variable mode
Delay [DLY]: 0 to 300 ms
Memory [MEM]: 3 locations for instant venue setting recall and factory reset
Construction Durable 0.6" (15 mm) poplar cabinet
Black paint finish
Handle on each side
Powder-coated 20-gauge steel grille
Power Requirements 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W
AC Plug Style 3-pin IEC 250VAC
Operating Temperature Range 32 to 104deg.F (0 to 40deg.C)
Dimensions (HxWxD) 17.9x16.4x20.8" (454.7x416.6x528.3 mm)
Weight 48 lbs (21.7 kg)
