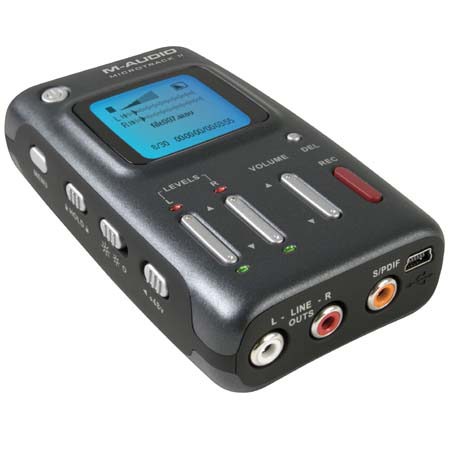

Two-channel portable WAV (BWF) and MP3 recorder |
|
Records to easily found CompactFlash or Microdrive media |
|
Capable of recording at rates up to 24-bit/96kHz for WAV files, and up to 320kbps at 48kHz for MP3 files |
|
Drag-and-drop file transfer to Mac or PC via fast USB 2.0 port |
|
Can be powered by USB connection, with the built-in rechargeable lithium-ion battery, or with the included AC power supply |
|
Separate left and right input level controls with dedicated signal and peak indicators, stereo output level control |
|
Dual microphone preamps with 48V phantom power for use with studio-quality condenser Mics |
|
1/4" TRS inputs for Mic or line-level input |
|
3.5mm stereo Mic input with 5V of power for the supplied stereo electret microphone |
|
S/PDIF coaxial digital input |
|
RCA stereo line outputs and 3.5mm stereo mini headphone out for monitoring |
|
Large backlit LCD display with backlight dimmer |
|
Intuitive dedicated button complement includes Navigation, Record, Hold, Pause, Delete, Menu and Power |
|
Analog input limiter with bypass |
|
Add markers to BWF recordings easily |
|
S/PDIF input can be monitored via headphones while recording |
|
Seamlessly records files over 2GB in size |
|
Easy organization with customizable folders |
|
Hibernation mode |
| Type | 2-Channel Portable Audio Recorder |
| Recording/Reading Methods | MP3 or WAV (BWF) |
| Recording Bit Rate | WAV: 16 or 24 bit
MP3: 96 to 320kbps |
| Sampling Frequency | WAV: 44.1/48/88.2/96kHz
MP3: 44.1/48kHz |
| Number of Channels | 2 |
| Inputs | 2 x 1/4" TRS Phone Jacks (Mic/Line, Balanced)
1 x 3.5mm Stereo Mini 5V Electret Mic In
1 x Coaxial S/PDIF Digital In |
| Output | 2 x RCA Phono Jacks (L/R, Line)
1 x 3.5mm Stereo Mini Headphone Out
1 x USB Port |
| Dimensions (WxDxH) | 7.4 x 6.9 x 2.2" (187 x 175 x 55mm)(Boxed) |
| Weight | 1.1 lbs (0.5kg)(Boxed) |
| Warranty | M-Audio 1 year limited warranty |
| | |
