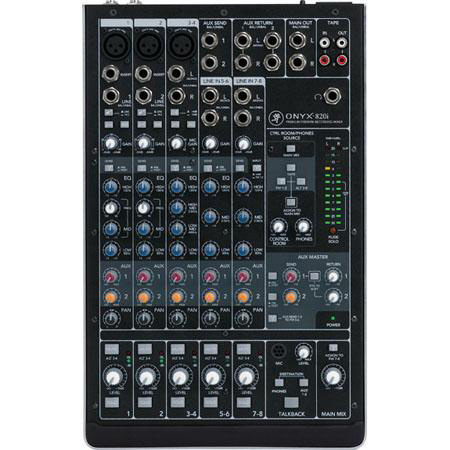

Mackie 8-Channel Premium Firewire Recording Mixer with Integrated 24-Bit/96kHz FireWire I/O

Mackie
SKU: MAONYX820I MFR: ONYX 820I
Mackie : Picture 1 thumbnail Mackie : Picture 2 thumbnail Mackie : Picture 3 thumbnail Mackie : Picture 4 thumbnail

List Price: $559.99

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
20% Off

Our Price

$449.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Mackie

The feature-packed and performance-optimizing Onyx 820i is the most compact and desk-friendly version of the Onyx-i Series. With eight channels, three Onyx mic preamps, two aux sends, talkback, flexible control room routing and a variety of Perkins EQ configurations, there is plenty of analog goodness to go around. Plus, FireWire I/O lets you route all channels, auxes and the master L/R to nearly any DAW for recording and return a stereo signal to the control room or into a channel for mix integration. The 820i packs a big punch in a very small package.

Mackie Features

  • 8-channel premium analog mixer with integrated 24-bit/96kHz FireWire I/O
  • Qualified by Mackie for use with all major DAWs, including: Pro Tools M-Powered 8 (Requires FREE driver upgrade download), Logic, SONAR, Cubase, Ableton Live, Final Cut Pro
  • 3 Onyx boutique-quality mic preamps
  • 3-band Perkins EQ with sweepable mids on mic/line channels
  • 3-band Perkins EQ on stereo line channels
  • Hybrid mono/stereo channel with 4-band Perkins EQ
  • 8x2 FireWire routing, including aux sends and pre/post EQ assignment for all channels
  • Stereo playback from DAW, returned to control room or into channel for integration into mix
  • Built-in DI on first two channels for direct connection of guitars, bass, etc
  • Individual 48V phantom power switches on all mic inputs
  • Talkback section with built in mic and flexible routing
  • "Planet Earth" switching power supply for worldwide use
  • Optional rack kit available
  • Includes Tracktion 3 Music Production Software for Mac or PC

Mackie Specifications

Total No. of Inputs
8
Mic/Line Inputs
3 x Microphone Inputs
5 x Line Inputs (channels 1 & 2 can be switched to Hi-Z instrument level)
Stereo Line Inputs
3-band Perkins EQ on stereo line channels
AUX Sends
2
AUX Returns
2 Stereo Returns
Inserts
2 x Channel Inserts
BUS (Group) Outputs
None
2 Trk Master I/O
2 x Balanced XLR Outputs with Mic or Line-Level Output Button
ALT I/O
2 x TRS 1/4" Alt. Output
Stereo RCA Tape Input & Output
Monitor Outputs
2 x Balanced TRS 1/4" Control Room Outputs (with dedicated volume knob)
1 x Stereo 1/4" Headphone Output (with dedicated volume knob)
EQ Section
2 x 4-Band EQ with Mid Sweep
1 x 4-Band EQ
2 x 3-Band EQ (on stereo channels)
Solo/Mute
Yes, on every channel
Channel Level Control
Rotary Knobs
Trim/Gain Control
Rotary Knobs
Phantom Power
Yes, +48V (on every mic channel with individual buttons)
Metering
12-Segment LED Master Meter
2-Segment LED Meter On Every Channel
Frequency Response
Mic input to any output with all gain stages at unity: +0/-0.5 dB, 20 Hz to 20 kHz
Stereo channel line input to any output with all gain stages at unity: +0/-0.5 dB, 20 Hz to 20 kHz
FireWire In & Out at 44.1 kHz: +/-0.5 dB, 20 Hz to 20 kHz, -3 dB at 21 kHz
FireWire In & Out at 96 kHz: +/-0.5 dB, 20 Hz to 20 kHz, -3 dB at 45 kHz
Total Harmonic Distortion (THD)
20 Hz to 20 Hz, 20 Hz to 80 kHz Bandwidth
Mic Input at Insert (+4 dBu in, 0 dB gain, +4 dBu out): 0.001%
Power Supply
Universal AC Power Supply, 100 VAC - 240 VAC, 50 - 60 Hz
Dimensions
14.2 x 9 x 3.8in / 361 x 229 x 96mm
Weight
10lbs / 4.5kg
Software Requirements: PC
Microsoft Windows 7 32 / 64, Vista 32 / 64 RTM or XP SP 2
Pentium 4, Celeron or Athlon XP processor
512MB RAM
Software Requirements: Mac
Mac OS X 10.4.11 - 10.6.4
G4 processor
512 MB RAM
