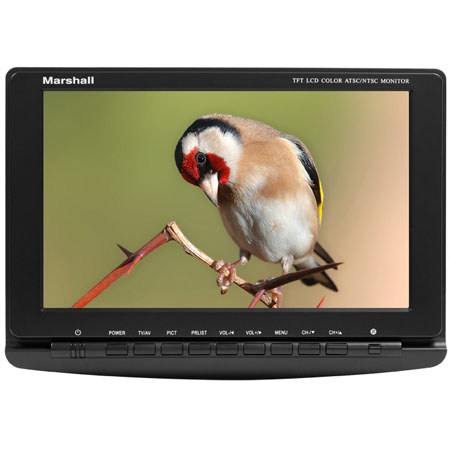

Marshall Electronics 10.2" Portable LCD Monitor with ATSC/QAM Tuner/NTSC

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$399.00 List Price

Our Price

$297.85 $12 per week
Free Shipping
Add to Wishlist

About this item

The Marshall's V-LCD102-ATSC 10.2" ATSC Field Monitor doesn't compromise quality for price and size. Its compact 10.2" footprint produces bright, high-contrast HD imagery, while the built-in digital tuner receives digital broadcast signals without the need for a digital-to-analog converter box.

Powered by AC or DC, this is the perfect field monitor, excelling in mobile ENG, surveillance and CCTV applications. QAM (or ClearQAM) tuning allows viewing of non-encrypted digital channels, while a wide array of presets and picture controls let you adjust the image to your application's needs.

What's Included With This Item

  • Marshall V-LCD102-ATSC 10.2" Portable LCD Monitor
  • Remote Control
  • AC/DC Adapter
  • 75 OHM Antenna Conversion Cable (Screw Connector)
  • U-Shaped Support Bracket
  • A/V Cable- Manual
  • Marshall Warranty

Key Features

  • Pure Digital: The V-LCD102-ATSC's built-in digital ATSC tuner complies with the Federal Communications Commission (FCC) mandate requiring the conversion of analog broadcast signals to digital. No digital-to-analog converter box is required.
  • Picture and Color Modes : Standard video adjustments include contrast, brightness, color, sharpness and tint, along with four picture preset modes (Personal, Standard, Dynamic and Soft).
  • There are also three preset color modes (Normal, Warm and Cool), along with three different Format modes (Auto, 4:3 and Wide).
  • Audio Presets: Four audio preset modes (Personal, Standard, Movie and Music) provide clean and precise sound from two-channel stereo speakers.
  • Adjustable Stand: The V-LCD102-ATSC includes an adjustable stand and can be powered with included AC/DC power adapter or auto adapter.

Technical Specs

Resolution 800 x 480
Aspect Ratio 16:9
Contrast 400:1
Brightness 180cd/m2
Video Input 1Vp-p 75 ohm(two route)
Audio Input 2Vp-p two channels (L & R)
Audio output Build-in loudspeaker (0.5W x 2)
Input Resistance 75 Ohm
Input bit rate Max. 19.4Mbit/s
Audio decoding AC-3
Sound output Stereo/2-channel (Left & Right)
QAM Modulation 64-QAM
Frequencies CATV (STD, IRC, HRC)
AIR: CH2-69
CATV: CH2-125
OSD menu language English, French, Spanish
Power supply AC 110-240V
DC 12V 10W
