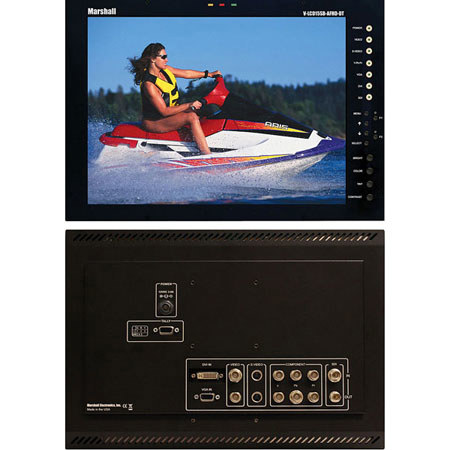

Marshall Electronics V-LCD15SB-AFHD-DT, 15" Sunbrite Outdoor High Definition LCD Monitor with all Digital / Analog, HD / SD Inputs and Advanced Function Features

Special Order Item - This item typically ships within 3-7 Days. Delivery is subject to availability.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping
Add to Wishlist

About the Marshall Electronics V-LCD15SB-AFHD-DT

The Marshall V-LCD15SB-AFHD-DT is a high resolution LCD display with 2.4 million pixels. It includes Universal Input configuration and does not require any adapter boxes or expensive options. Standard inputs include active loop-through on each connection for HDSDI/SDI, Y/C, and composite video with NTSC/PAL automatic recognition. There is also a multi-format connector for HD or SD analog component signals.

For computer graphic applications, this unit also has a scalable SXGA input. Additional features include Zoom function and direct access for adjustment and selection functions. This monitor can be wall or ceiling mounted with an optional VESA bracket. Desktop stand and universal power supply are included.

Marshall Electronics V-LCD15SB-AFHD-DT Includes

  • Marshall V-LCD15SB-AFHD-DT 15" Sunbrite Outdoor High Definition LCD Monitor
  • Desktop Stand
  • V-PS12-5V-1 Power Supply
  • Conxall 2-Pin Twist-Lock Connector
  • Operating Instructions

Marshall Electronics V-LCD15SB-AFHD-DT Features

  • Marshall Electronics' new SunBrite LCD panel, dramatically boosts the efficiency of the backlight's light utilization and minimizing the surface reflection of ambient light. The transmissive LCD produces high-contrast images, even in challenging outdoor lighting conditions
  • With a variety of analog and digital inputs, the V-LCD15SB-AFHD-DT accommodates virtually all video formats. Input types include Composite Video, S-Video, YPbPr, SDI, VGA, and DVI with HDCP
  • Analog signals are digitized using an advanced 10-bit process with 4x over-sampling, 5-line super-adaptive 2D comb filtering, and exacting color space conversion. Video is scaled to fit on the screen in the highest possible resolution using a state-of-the-art LSI
  • Emulation of SMPTE-C/EBU color space allows the V-LCD15SB-AFHD-DT to replace any broadcast CRT monitor. Settings include D55, D65 and D95. Bias and Gain adjustment for each color enables precise color matching and white balance
  • Aspect ratio settings, underscan mode, blue-only mode, monochrome mode, and H/V delay are a few of the advanced features making the V-LCD15SB-AFHD-DT at home in any broadcast environment. Pixel-to-Pixel mode also allows native display of any incoming image format
  • A variety of screen markers in both 4:3 and 16:9 modes allow accurate monitoring of the different aspect ratios used in broadcast environments
  • Two user-definable function buttons on the front-panel allow quick access to numerous settings and features including aspect ratio, screen markers, monochrome mode, color temperature, delay mode, and more

Marshall Electronics V-LCD15SB-AFHD-DT Specifications

Screen Size 15.0" Diagonal
Display Area 304.128 x 228.096 mm (h x v)
Aspect Ratio 4:3 Native (4:3/16:9 Modes)
Pixels 1024 x RGB x 768
Color Depth 16,777,216 Colors
Viewing Angle 160° x 140° (h x v)
Brightness 600 cd/m2
Contrast Ratio 600:01:00
Dot Pitch 0.099 x 0.297 mm (h x v)
Pixel Pitch 0.297 x 0.297 mm (h x v)
Pixel Response 18 ms (rise + fall)
Video Input / Output Supports SMPTE 170M, NTSC/PAL
Color burst/sub-carrier required
S-Video (Y/C) Input / Output Supports SMPTE 170M, NTSC/PAL
YPBPR Input / Output Supports SMPTE 260M, 274M, 296M
HD-SDI Input / Output Supports ITU-R BT.656, SMPTE 259M. 292M
VGA Input Supports RGBHV, RsGsBs, RGsB, RGB CS
DVI Input Supports Digital Signals Only (DVI-D)
HDCP Supported
Video Input Connectors 1 x BNC Female (75 O)
S-Video (Y/C) Connectors 1 x 4-Pin Mini-DIN
YPBPR Connectors 3 x BNC Female (75 O)
HD-SDI Connectors 1 x BNC Female (75 O)
VGA Connectors 1 x HD-15 Female
DVI Connectors 1 x DVI-I 29-Pin Female
Video Output Connectors 1 x BNC Female (75 O)
S-Video (Y/C) Connectors 1 x 4-Pin Mini-DIN
YPBPR Connectors 3 x BNC Female (75 O)
SDI Connectors 1 x BNC Female (75 O)
Power Input 2-Pin Conxall Twist-Lock Female
Tally Interface HD-15 Female
Tally Indicators 3 LEDs (Green, Red, Yellow)
Power Consumption 3A @ 12VDC (36 W)
Voltage Requirement 12-14 VDC
V-PS12-5V-1 Power Supply Input 100V-240V, 50/60Hz
Output 12-14V, 5A
Operating Temperature 32°F to 120°F (0°C to 50°C)
Storage Temperature -4°F to120°F (-20°C to 50°C)
Compliance FCC-Class A, ANSI-63.4 (Certificates on file)
Height with Stand 11.01"
Rack Height 6 RU
Additional Mounting VESA 75 mm
Dimensions 15.25" x 10.45" x 1.77" (w x h x d)
Weight (Monitor Only) 8.1 lbs
