Marshall Electronics

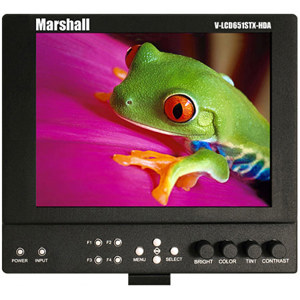

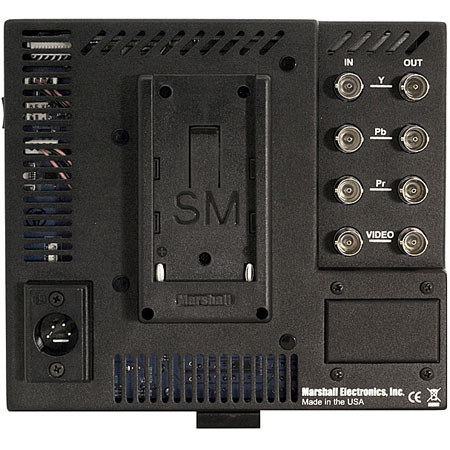

Marshall Electronics V-LCD651STX-HDA-CM 6.5" High Resolution Super Transflective Portable Field/Camera-Top Monitor with Canon Battery Mount

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,899.00 List Price

Our Price

$1,551.35 $62 per week
Free Shipping
Add to Wishlist

About the Marshall Electronics V-LCD651STX-HDA-CM

The V-LCD651STX-HDA-CM is the latest update to Marshall's line of Super Transflective Outdoor Monitors. This 6.5" portable field / camera-top monitor is designed specifically for outdoor applications with high ambient light. The technology minimizes surface reflection of both outdoor and indoor light, while featuring a much wider color reproduction range than typical transflective/reflective LCDs or even those with increased backlight performance.

Marshall's outdoor super-transmissive LCDs provide improved visibility by producing high-contrast images and a wider viewing angle, even under diverse and challenging lighting environments. This innovative technology dramatically boosts the efficiency of the LCD backlight's light utilization, while maintaining extended temperature ratings and low power consumption for outdoor operation.

It offers a durable and lightweight design, weighing in at only 1.3 pounds. It also features the completely digital TFT-MegaPixel high resolution LCD screen with 2.4 million pixels, 4-pin XLR power jack, and optical-grade polycarbonate screen protection. Analog signals are digitized using advanced 10-bit processing with 4x oversampling and adaptive 5-line comb filter.

Marshall Electronics V-LCD651STX-HDA-CM Includes

  • Marshall V-LCD651STX-HAD 6.5 inch Super Transflective Portable Field/Camera-Top Monitor
  • Power Adapter
  • Canon Battery Mount
  • Marshall Warranty

Marshall Electronics V-LCD651STX-HDA-CM Features

  • Super Transflective 1024 x 768 LCD panel
  • Durable, thin, and lightweight construction
  • 650 cd/m2 brightness, 500:1 contrast ratio
  • 4 user-configurable function buttons
  • RGB gain and bias control
  • User-adjustable panning (Pixel-to-Pixel mode)
  • False Color On/Off
  • Peaking Filter On/Off
  • RGB Check Field / Field Detect
  • 16:9, 4:3, Pixel-to-Pixel modes
  • Variety of Markers, including user-adjustable

Marshall Electronics V-LCD651STX-HDA-CM Specifications

Display (Viewing Area) 6.5-inch Diagonal (132.096mm x 99.072mm)
Resolution (Pixels) 1024 x 768
Viewing Angle L/R: 160°
U/D: 140°
Pixel Pitch (mm) 0.129mm(H) x 0.129mm(V)
Brightness (in cd/m2) 650
Contrast Ratio 500:1
Inputs Composite x 1, Component x 1
Loop-through outputs Composite x 1, Component x 1
Power Consumption 1 Amp (Max) @ 12VDC (12 W Max)
Battery Mount Canon
Dimensions (WxHxD) 6.8" x 6.0" x 1.9" / 17.27 x 15.24 x 4.83 cm
Approx. Weight 1.3 lbs. (0.590 kg)
